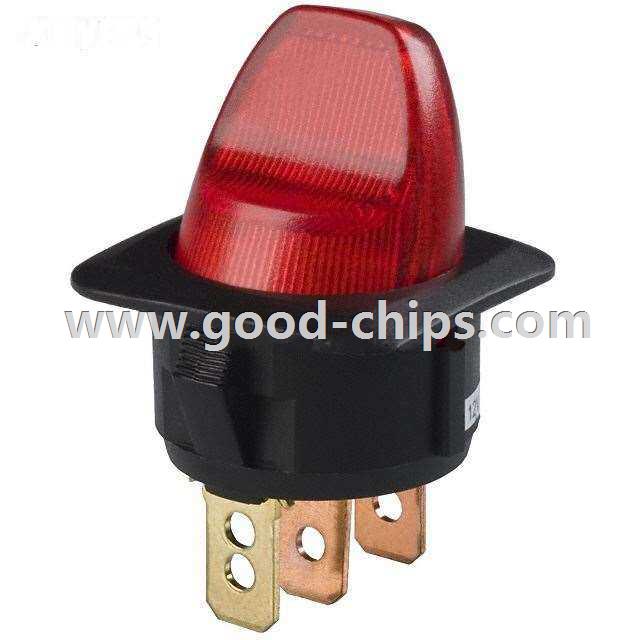

| Manufacturer Part Number: | CLS-TS11A12250R |
|---|---|
| Manufacturer: | Lumex Opto/Components Inc. |
| Product Category: | Toggle Switches |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Toggle Switch SPST Panel Mount, Snap-In |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CLS-TS11A12250R Datasheet |
| Internal Part Number | 898-CLS-TS11A12250R | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Switches | |
| Family | Toggle Switches | |
| Manufacturer | Lumex Opto/Components Inc. | |
| Series | CLS | |
| Packaging | Bulk | |
| Part Status | Obsolete | |
| Circuit | SPST | |
| Switch Function | On-Off | |
| Current Rating | 25A (DC) | |
| Voltage Rating - AC | - | |
| Voltage Rating - DC | 12V | |
| Actuator Type | Flatted | |
| Actuator Length | 17.00mm | |
| Illumination | Illuminated | |
| Illumination Type, Color | LED, Red | |
| Illumination Voltage (Nominal) | 12 VDC | |
| Mounting Type | Panel Mount, Snap-In | |
| Termination Style | Quick Connect - 0.250" (6.3mm) | |
| Panel Cutout Dimensions | Circular - 24.00mm Dia | |
| Bushing Thread | - | |
| Ingress Protection | - | |
| Features | - | |
| Actuator Material | - | |
| Electrical Life | - | |
| Operating Temperature | - | |
| Standard Package | 50 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CLS-TS11A12250R | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CLS-TS11A12250R is in stock for immediate shipping now. We are the distributor of Lumex Opto/Components Inc. all series components. The condition of CLS-TS11A12250R is new and unused, you can buy CLS-TS11A12250R Lumex Opto/Components Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CLS-TS11A12250R.
