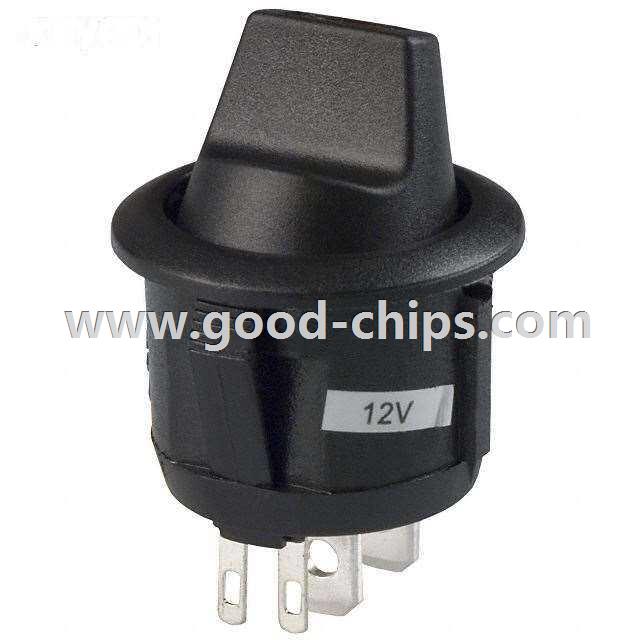

Manufacturer Part Number: | CLS-TC11A12190R |
---|---|
Manufacturer: | Lumex Opto/Components Inc. |
Product Category: | Toggle Switches |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | Toggle Switch SPST Panel Mount, Snap-In |
Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | CLS-TC11A12190R Datasheet |
Internal Part Number | 898-CLS-TC11A12190R | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Switches | |
Family | Toggle Switches | |
Manufacturer | Lumex Opto/Components Inc. | |
Series | CLS | |
Packaging | Bulk | |
Part Status | Obsolete | |
Circuit | SPST | |
Switch Function | On-Off | |
Current Rating | 20A (DC) | |
Voltage Rating - AC | - | |
Voltage Rating - DC | 12V | |
Actuator Type | Flatted | |
Actuator Length | - | |
Illumination | Illuminated | |
Illumination Type, Color | LED, Red | |
Illumination Voltage (Nominal) | 12 VDC | |
Mounting Type | Panel Mount, Snap-In | |
Termination Style | Quick Connect - 0.187" (4.7mm) | |
Panel Cutout Dimensions | Circular - 20.20mm Dia | |
Bushing Thread | - | |
Ingress Protection | - | |
Features | - | |
Actuator Material | - | |
Electrical Life | - | |
Operating Temperature | - | |
Standard Package | 100 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | CLS-TC11A12190R | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
CLS-TC11A12190R is in stock for immediate shipping now. We are the distributor of Lumex Opto/Components Inc. all series components. The condition of CLS-TC11A12190R is new and unused, you can buy CLS-TC11A12190R Lumex Opto/Components Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CLS-TC11A12190R.
