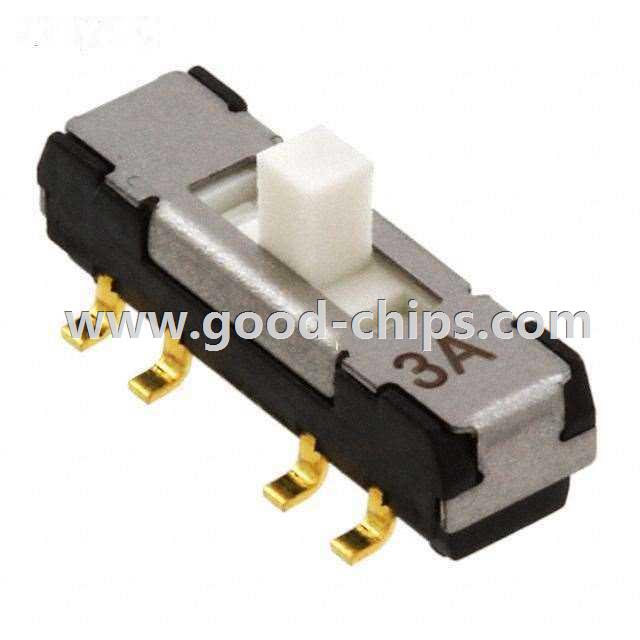

| Manufacturer Part Number: | CL-SB-23B-02 |
|---|---|
| Manufacturer: | Copal Electronics Inc. |
| Product Category: | Slide Switches |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Slide Switch DP3T Surface Mount |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CL-SB-23B-02 Datasheet |
| Internal Part Number | 898-CL-SB-23B-02 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Slide Switch 3D CAD Models | |
| 3D Model | CL-SB-23B-02 | |
| Category | Switches | |
| Family | Slide Switches | |
| Manufacturer | Copal Electronics Inc. | |
| Series | CL-SB | |
| Packaging | Bulk | |
| Part Status | Active | |
| Circuit | DP3T | |
| Contact Timing | Non-Shorting (BBM) | |
| Switch Function | On-On-On | |
| Current Rating | 200mA (DC) | |
| Voltage Rating - AC | - | |
| Voltage Rating - DC | 12V | |
| Actuator Type | Standard | |
| Actuator Length | 2.00mm | |
| Contact Material | Copper | |
| Contact Finish | Gold | |
| Mounting Type | Surface Mount | |
| Termination Style | Gull Wing | |
| Features | - | |
| Actuator Material | Polyamide (PA), Nylon | |
| Switch Travel | 2.00mm | |
| Operating Temperature | -40°C ~ 85°C | |
| Mechanical Life | - | |
| Electrical Life | 10,000 Cycles | |
| Operating Force | 160/260gf | |
| Standard Package | 50 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CL-SB-23B-02 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CL-SB-23B-02 is in stock for immediate shipping now. We are the distributor of Copal Electronics Inc. all series components. The condition of CL-SB-23B-02 is new and unused, you can buy CL-SB-23B-02 Copal Electronics Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CL-SB-23B-02.
