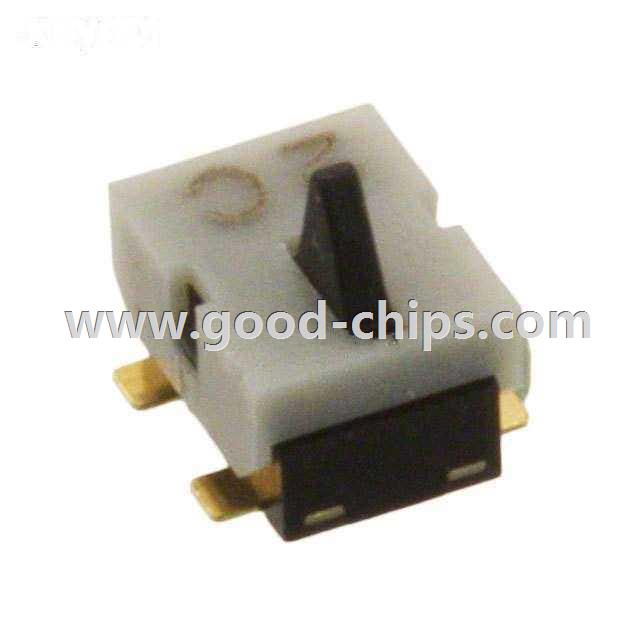

| Manufacturer Part Number: | CL-DB-1CB-A2T |
|---|---|
| Manufacturer: | Copal Electronics Inc. |
| Product Category: | Snap Action, Limit Switches |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | SWITCH DETECTOR SPST-NO 1MA 5V |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CL-DB-1CB-A2T Datasheet |
| Internal Part Number | 898-CL-DB-1CB-A2T | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Detect Switches 3D CAD Models | |
| 3D Model | CL-DB-1CB-A2T | |
| Online Catalog | CL-DB Series | |
| Category | Switches | |
| Family | Snap Action, Limit Switches | |
| Manufacturer | Copal Electronics Inc. | |
| Series | CL-DB | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Circuit | SPST-NO | |
| Switch Function | Off-Mom | |
| Current Rating | 1mA (DC) | |
| Voltage Rating - AC | - | |
| Voltage Rating - DC | 5V | |
| Actuator Type | Angled Toggle (Detector) | |
| Mounting Type | Surface Mount | |
| Termination Style | Gull Wing | |
| Ingress Protection | - | |
| Features | - | |
| Operating Force, Torque | 35gf | |
| Release Force | - | |
| Pretravel | 0.012" (0.3mm) | |
| Differential Travel | - | |
| Overtravel | 0.029" (0.74mm) | |
| Operating Position | 0.120" (3.05mm) | |
| Mechanical Life | - | |
| Electrical Life | 100,000 Cycles | |
| Operating Temperature | -40°C ~ 85°C | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CL-DB-1CB-A2T | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CL-DB-1CB-A2T is in stock for immediate shipping now. We are the distributor of Copal Electronics Inc. all series components. The condition of CL-DB-1CB-A2T is new and unused, you can buy CL-DB-1CB-A2T Copal Electronics Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CL-DB-1CB-A2T.
