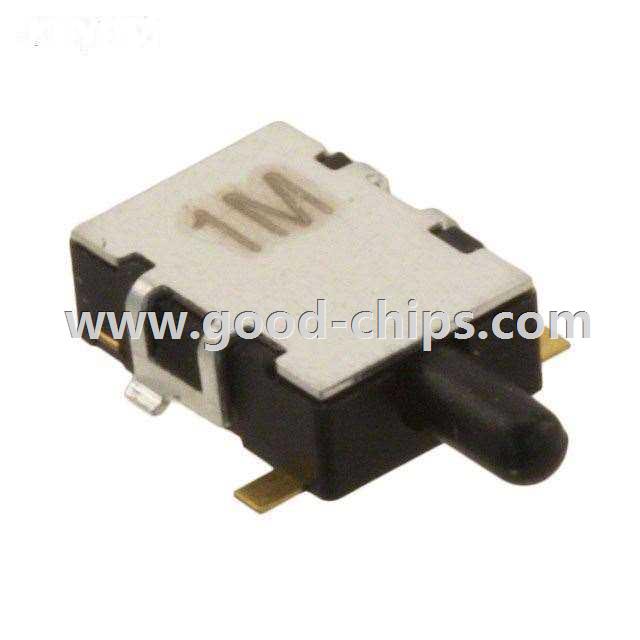

Manufacturer Part Number: | CL-DA-1CB4-A2T |
---|---|
Manufacturer: | Copal Electronics Inc. |
Product Category: | Snap Action, Limit Switches |
Available Quantity: | 27010 Pieces |
Unit Price: | Quote by Email |
Description: | SWITCH DETECTOR SPST-NO 100MA |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | CL-DA-1CB4-A2T Datasheet |
Internal Part Number | 898-CL-DA-1CB4-A2T | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Detect Switches 3D CAD Models | |
3D Model | CL-DA-1CB4-A2T | |
Online Catalog | CL-DA Series | |
Category | Switches | |
Family | Snap Action, Limit Switches | |
Manufacturer | Copal Electronics Inc. | |
Series | CL-DA | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Circuit | SPST-NO | |
Switch Function | Off-Mom | |
Current Rating | 100mA (DC) | |
Voltage Rating - AC | - | |
Voltage Rating - DC | 12V | |
Actuator Type | Overtravel Plunger | |
Mounting Type | Surface Mount, Right Angle | |
Termination Style | Gull Wing | |
Ingress Protection | - | |
Features | - | |
Operating Force, Torque | 76gf | |
Release Force | - | |
Pretravel | 0.014" (0.35mm) | |
Differential Travel | - | |
Overtravel | 0.079" (2.0mm) | |
Operating Position | 0.134" (3.4mm) | |
Mechanical Life | - | |
Electrical Life | 50,000 Cycles | |
Operating Temperature | -40°C ~ 85°C | |
Standard Package | 1,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | CL-DA-1CB4-A2T | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
CL-DA-1CB4-A2T is in stock for immediate shipping now. We are the distributor of Copal Electronics Inc. all series components. The condition of CL-DA-1CB4-A2T is new and unused, you can buy CL-DA-1CB4-A2T Copal Electronics Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CL-DA-1CB4-A2T.
