| Manufacturer Part Number: | CKP2012N3R3M-T |
|---|---|
| Manufacturer: | Taiyo Yuden |
| Product Category: | Fixed Inductors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

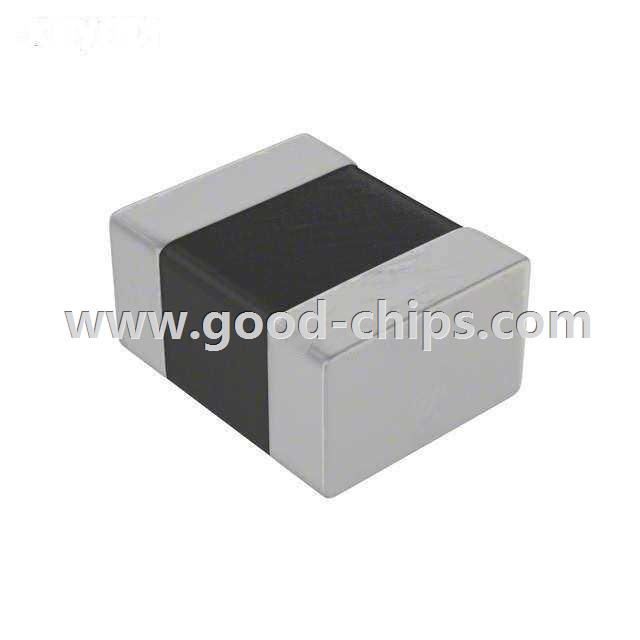

| Description: | 3.3µH Unshielded Multilayer Inductor 700mA 240 mOhm Max 0805 (2012 Metric) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CKP2012N3R3M-T Datasheet |
| Internal Part Number | 898-CKP2012N3R3M-T | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | CKP Series | |
| Category | Inductors, Coils, Chokes | |
| Family | Fixed Inductors | |
| Manufacturer | Taiyo Yuden | |
| Series | CK | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Multilayer | |
| Material - Core | - | |
| Inductance | 3.3µH | |
| Tolerance | ±20% | |
| Current Rating | 700mA | |
| Current - Saturation | - | |
| Shielding | Unshielded | |
| DC Resistance (DCR) | 240 mOhm Max | |
| Q @ Freq | - | |
| Frequency - Self Resonant | - | |
| Ratings | - | |
| Operating Temperature | -40°C ~ 85°C | |
| Frequency - Test | 1MHz | |
| Mounting Type | Surface Mount | |
| Package / Case | 0805 (2012 Metric) | |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) | |
| Height - Seated (Max) | 0.037" (0.95mm) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CKP2012N3R3M-T | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CKP2012N3R3M-T is in stock for immediate shipping now. We are the distributor of Taiyo Yuden all series components. The condition of CKP2012N3R3M-T is new and unused, you can buy CKP2012N3R3M-T Taiyo Yuden with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CKP2012N3R3M-T.
