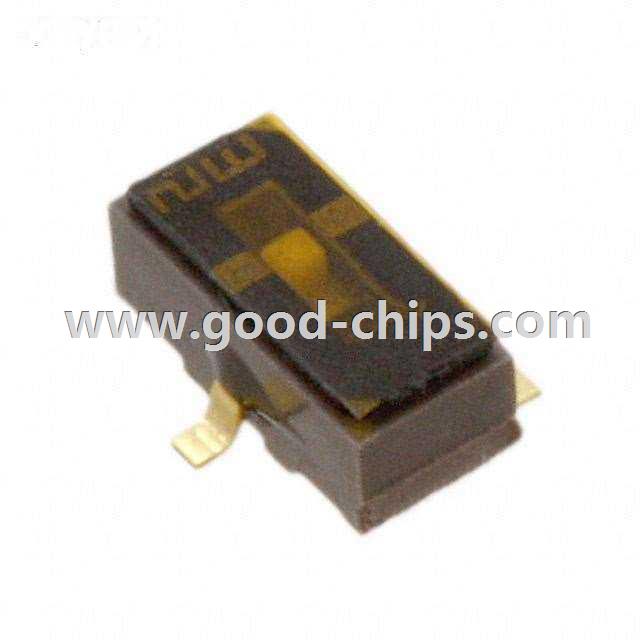

Manufacturer Part Number: | CJS-1200TB |
---|---|
Manufacturer: | Copal Electronics Inc. |
Product Category: | DIP Switches |
Available Quantity: | 103010 Pieces |
Unit Price: | Quote by Email |
Description: | Dip Switch SPDT 2 Position Surface Mount Slide (Standard) Actuator 100mA 6VDC |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | CJS-1200TB Datasheet |
Internal Part Number | 898-CJS-1200TB | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | CJS & CAS Slide Switches 3D CAD Models | |
Featured Product | CJS and CAS Series Surface-Mount Slide Switches | |
3D Model | CJS-1200TB | |
Online Catalog | CJS Series | |
Category | Switches | |
Family | DIP Switches | |
Manufacturer | Copal Electronics Inc. | |
Series | CJS | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Circuit | SPDT | |
Number of Positions | 2 | |
Current Rating | 100mA | |
Voltage Rating | 6VDC | |
Actuator Type | Slide (Standard) | |
Actuator Level | Flush, Recessed | |
Contact Material | Copper Alloy | |
Contact Finish | Gold | |
Height Above Board | 0.098" (2.50mm) | |
Mounting Type | Surface Mount | |
Termination Style | Gull Wing | |
Pitch | - | |
Washable | Yes | |
Features | Tape Seal | |
Body Material | Polyphenylene Sulfide (PPS) | |
Length | 0.212" (5.40mm) | |
Operating Temperature | -40°C ~ 85°C | |
Mechanical Life | - | |
Electrical Life | 200 Cycles | |
Standard Package | 1,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | CJS-1200TB | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
CJS-1200TB is in stock for immediate shipping now. We are the distributor of Copal Electronics Inc. all series components. The condition of CJS-1200TB is new and unused, you can buy CJS-1200TB Copal Electronics Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CJS-1200TB.
