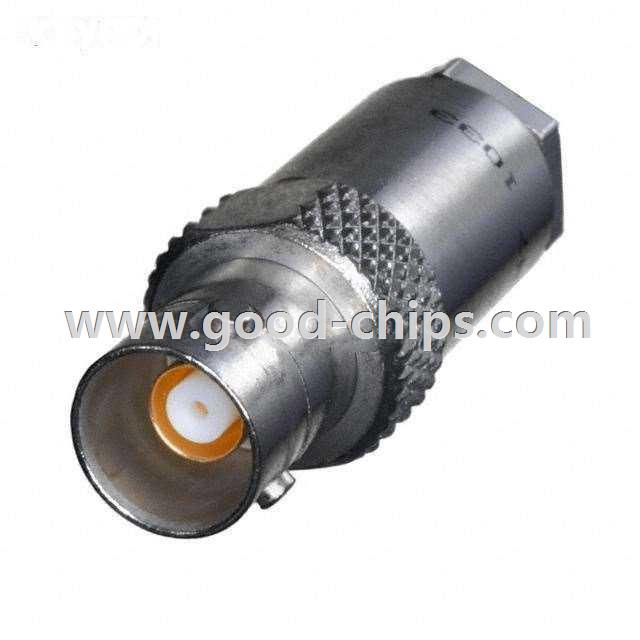

CJ70-47

CJ70-47
Manufacturer Part Number:CJ70-47
Manufacturer:
Product Category:Coaxial Connectors (RF)
Available Quantity:9131 Pieces
Unit Price:Quote by Email
Description:TRB, Twinaxial/Triaxial Connector Jack, Female Socket (Concentric) Non-Constant Free Hanging (In-Line) Solder
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: CJ70-47 Datasheet
CJ70-47´s Parameters
Internal Part Number898-CJ70-47
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
Product Training ModulesConfigured Solutions Video Patching
Online Catalog TRB
CategoryConnectors, Interconnects
FamilyCoaxial Connectors (RF)
ManufacturerCinch Connectivity Solutions Trompeter
Series70
PackagingBulk
Part StatusActive
Connector StyleTRB, Twinaxial/Triaxial
Connector TypeJack, Female Socket (Concentric)
Contact TerminationSolder
Shield TerminationWrench Clamp
ImpedanceNon-Constant
Mounting TypeFree Hanging (In-Line)
Cable GroupM17/176-00002
Fastening TypeBayonet Lock
Frequency - Max500MHz
FeaturesThree Lug
Housing ColorSilver
Ingress Protection-
Body MaterialBrass
Body FinishNickel
Center Contact MaterialBeryllium Copper
Center Contact PlatingGold
Dielectric Material-
Voltage Rating400V
Operating Temperature-65°C ~ 165°C
Standard Package 10
Weight0.001 KG
ApplicationEmail for details
Replacement PartCJ70-47
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

CJ70-47 is in stock for immediate shipping now. We are the distributor of Bel Power Solutions all series components. The condition of CJ70-47 is new and unused, you can buy CJ70-47 Bel Power Solutions with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for CJ70-47.
