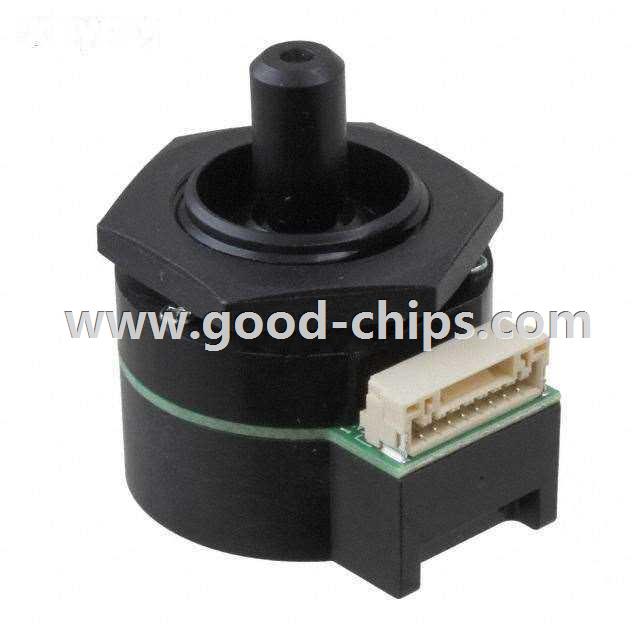

| Manufacturer Part Number: | CJ25-82010 |
|---|---|
| Manufacturer: | Copal Electronics Inc. |
| Product Category: | Encoders |
| Available Quantity: | 9024 Pieces |
| Unit Price: | Quote by Email |
| Description: | JOYSTICK ENCODER 8 DIRECTION OUT |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CJ25-82010 Datasheet |
| Internal Part Number | 898-CJ25-82010 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Joystick Encoder CJ25 3D CAD Models | |
| Featured Product | CJ25 Series Joystick Encoder | |
| 3D Model | CJ25-82010.stp | |
| 2D Drawing | CJ25-82010.dxf | |
| Online Catalog | CJ25 Series | |
| Category | Sensors, Transducers | |
| Family | Encoders | |
| Manufacturer | Copal Electronics Inc. | |
| Series | CJ25 | |
| Part Status | Active | |
| Encoder Type | Optical | |
| Output Type | Quadrature (Incremental) | |
| Pulses per Revolution | 5 | |
| Voltage - Supply | 5V | |
| Actuator Type | Shaft | |
| Detent | Yes | |
| Built in Switch | Yes | |
| Mounting Type | Panel Mount | |
| Orientation | User Selectable | |
| Termination Style | Connector | |
| Rotational Life (Cycles Min) | 1M | |
| Standard Package | 20 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CJ25-82010 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CJ25-82010 is in stock for immediate shipping now. We are the distributor of Copal Electronics Inc. all series components. The condition of CJ25-82010 is new and unused, you can buy CJ25-82010 Copal Electronics Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CJ25-82010.
