Manufacturer Part Number: | CIH10T22NJNC |
---|---|
Manufacturer: | Samsung Electro-Mechanics America, Inc. |
Product Category: | Fixed Inductors |
Available Quantity: | 105010 Pieces |
Unit Price: | Quote by Email |

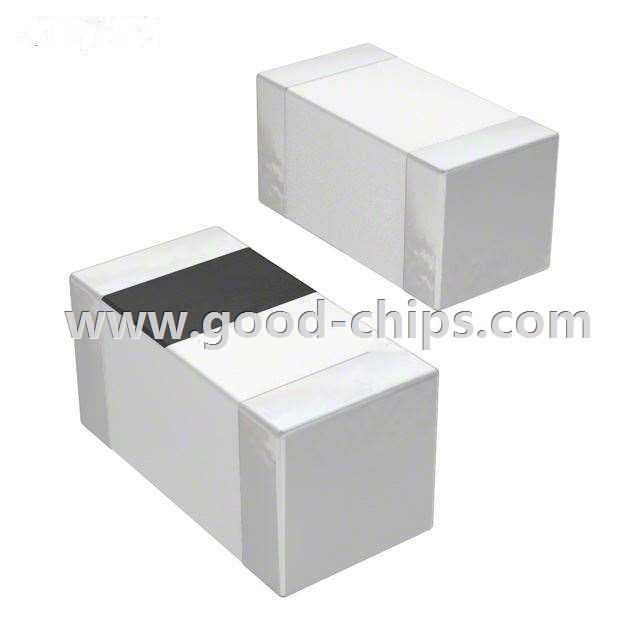

Description: | 22nH Unshielded Multilayer Inductor 500mA 400 mOhm Max 0603 (1608 Metric) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | CIH10T22NJNC Datasheet |
Internal Part Number | 898-CIH10T22NJNC | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Featured Product | CIH and CIG Series Chip Inductors | |
Online Catalog | CIH Series | |
Category | Inductors, Coils, Chokes | |
Family | Fixed Inductors | |
Manufacturer | Samsung Electro-Mechanics America, Inc. | |
Series | CIH10T | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | Multilayer | |
Material - Core | - | |
Inductance | 22nH | |
Tolerance | ±5% | |
Current Rating | 500mA | |
Current - Saturation | - | |
Shielding | Unshielded | |
DC Resistance (DCR) | 400 mOhm Max | |
Q @ Freq | 12 @ 100MHz | |
Frequency - Self Resonant | 1.6GHz | |
Ratings | - | |
Operating Temperature | -55°C ~ 125°C | |
Frequency - Test | 100MHz | |
Mounting Type | Surface Mount | |
Package / Case | 0603 (1608 Metric) | |
Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) | |
Height - Seated (Max) | * | |
Standard Package | 4,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | CIH10T22NJNC | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
CIH10T22NJNC is in stock for immediate shipping now. We are the distributor of Samsung Electro-Mechanics America, Inc. all series components. The condition of CIH10T22NJNC is new and unused, you can buy CIH10T22NJNC Samsung Electro-Mechanics America, Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CIH10T22NJNC.
