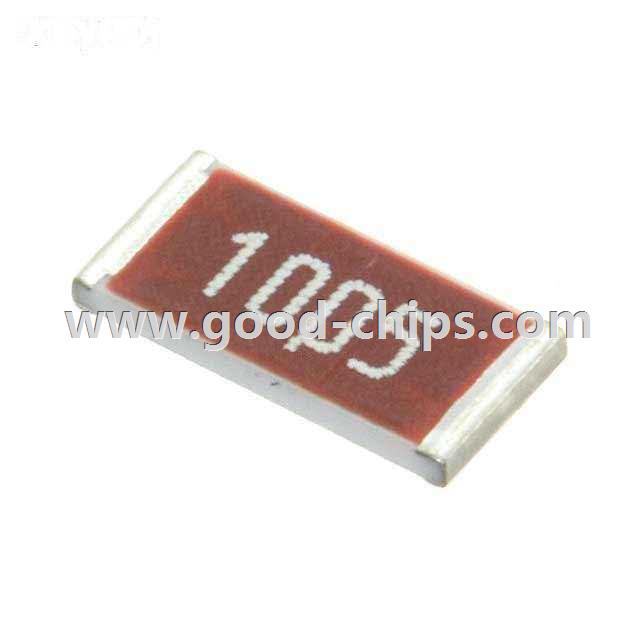

Manufacturer Part Number: | CHV2512-FX-1004ELF |
---|---|
Manufacturer: | Bourns Inc. |
Product Category: | Chip Resistor - Surface Mount |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | RES SMD 1M OHM 1% 1W 2512 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | CHV2512-FX-1004ELF Datasheet |
Internal Part Number | 898-CHV2512-FX-1004ELF | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
3D Model | CHV2512.stp | |
Online Catalog | CHV Series | |
Category | Resistors | |
Family | Chip Resistor - Surface Mount | |
Manufacturer | Bourns Inc. | |
Series | CHV | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Resistance (Ohms) | 1M | |
Tolerance | ±1% | |
Power (Watts) | 1W | |
Composition | Thick Film | |
Features | High Voltage | |
Temperature Coefficient | ±100ppm/°C | |
Operating Temperature | -55°C ~ 155°C | |
Package / Case | 2512 (6432 Metric) | |
Supplier Device Package | 2512 | |
Size / Dimension | 0.126" L x 0.252" W (3.20mm x 6.40mm) | |
Height | 0.030" (0.75mm) | |
Number of Terminations | 2 | |
Standard Package | 4,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | CHV2512-FX-1004ELF | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
CHV2512-FX-1004ELF is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of CHV2512-FX-1004ELF is new and unused, you can buy CHV2512-FX-1004ELF Bourns Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CHV2512-FX-1004ELF.
