Manufacturer Part Number: | CHPHT0805K46R4FGT |
---|---|
Manufacturer: | Vishay BC Components |
Product Category: | Chip Resistor - Surface Mount |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | RES SMD 46.4 OHM 1% 0.02W 0805 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | CHPHT0805K46R4FGT Datasheet |
Internal Part Number | 898-CHPHT0805K46R4FGT | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Mfg Application Notes | Power Dissipation, High Precision Appl Note High Temperature Appl Note | |
PCN Packaging | Multiple Devices 19/Oct/2015 | |

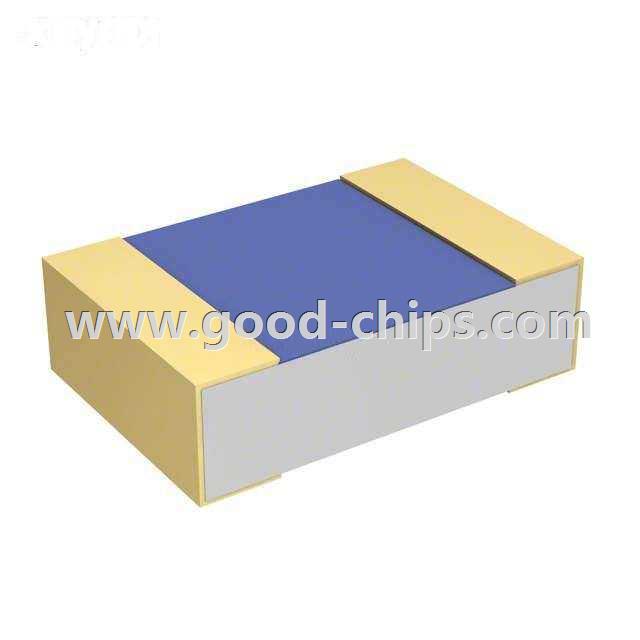

Online Catalog | CHPHT Series | |
Category | Resistors | |
Family | Chip Resistor - Surface Mount | |
Manufacturer | Vishay Sfernice | |
Series | CHPHT | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Resistance (Ohms) | 46.4 | |
Tolerance | ±1% | |
Power (Watts) | 0.02W | |
Composition | Thick Film | |
Features | Moisture Resistant | |
Temperature Coefficient | ±100ppm/°C | |
Operating Temperature | -55°C ~ 230°C | |
Package / Case | 0805 (2012 Metric) | |
Supplier Device Package | 0805 | |
Size / Dimension | 0.073" L x 0.049" W (1.85mm x 1.25mm) | |
Height | 0.020" (0.51mm) | |
Number of Terminations | 2 | |
Standard Package | 100 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | CHPHT0805K46R4FGT | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
CHPHT0805K46R4FGT is in stock for immediate shipping now. We are the distributor of Vishay BC Components all series components. The condition of CHPHT0805K46R4FGT is new and unused, you can buy CHPHT0805K46R4FGT Vishay BC Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CHPHT0805K46R4FGT.
