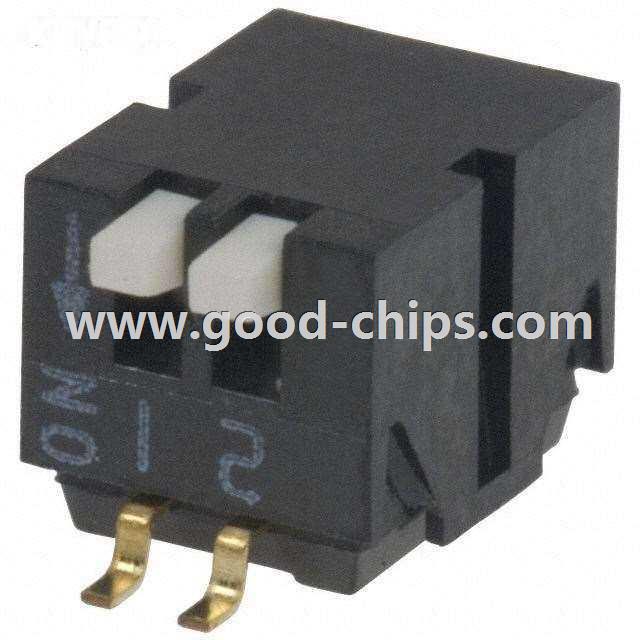

| Manufacturer Part Number: | CHP-021TB |
|---|---|
| Manufacturer: | Copal Electronics Inc. |
| Product Category: | DIP Switches |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Dip Switch SPST 2 Position Surface Mount, Right Angle Piano Actuator 100mA 6VDC |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CHP-021TB Datasheet |
| Internal Part Number | 898-CHP-021TB | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | 3D CAD Models | |
| 3D Model | CHP-021TB | |
| Category | Switches | |
| Family | DIP Switches | |
| Manufacturer | Copal Electronics Inc. | |
| Series | CHP | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Circuit | SPST | |
| Number of Positions | 2 | |
| Current Rating | 100mA | |
| Voltage Rating | 6VDC | |
| Actuator Type | Piano | |
| Actuator Level | Raised | |
| Contact Material | Copper Alloy | |
| Contact Finish | Gold | |
| Height Above Board | 0.181" (4.60mm) | |
| Mounting Type | Surface Mount, Right Angle | |
| Termination Style | Gull Wing | |
| Pitch | 0.050" (1.27mm), Half | |
| Washable | No | |
| Features | - | |
| Body Material | Polyphenylene Sulfide (PPS) | |
| Length | 0.181" (4.60mm) | |
| Operating Temperature | -40°C ~ 85°C | |
| Mechanical Life | - | |
| Electrical Life | 1,000 Cycles | |
| Standard Package | 500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CHP-021TB | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CHP-021TB is in stock for immediate shipping now. We are the distributor of Copal Electronics Inc. all series components. The condition of CHP-021TB is new and unused, you can buy CHP-021TB Copal Electronics Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CHP-021TB.
