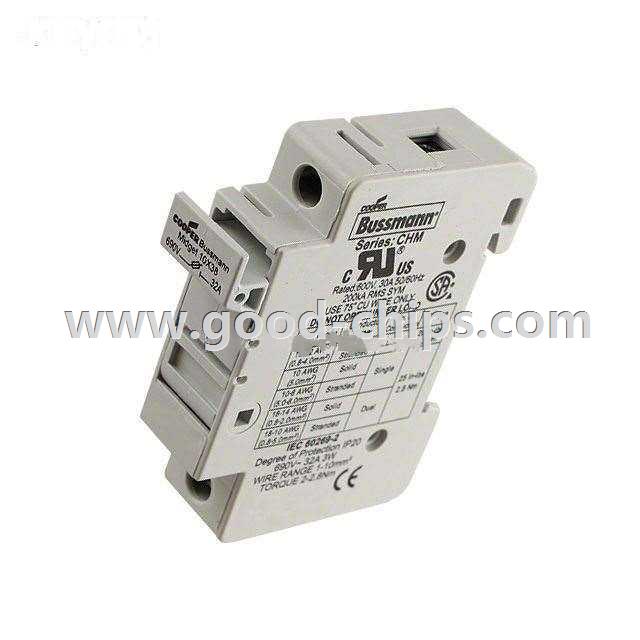

| Manufacturer Part Number: | CHM1DN |
|---|---|
| Manufacturer: | Eaton |
| Product Category: | Fuseholders |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | FUSE HLDR CART 690V 32A DIN RAIL |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CHM1DN Datasheet |
| Internal Part Number | 898-CHM1DN | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | CH Series 08/Aug/2011 | |
| PCN Design/Specification | CH Series Redesign 13/May/2011 | |
| Category | Circuit Protection | |
| Family | Fuseholders | |
| Manufacturer | Eaton | |
| Series | CH | |
| Part Status | Obsolete | |
| Fuseholder Type | Holder | |
| Fuse Type | Cartridge | |
| For Use With/Related Products | MIDGET | |
| Fuse Size | 0.394" Dia x 1.496" L (10mm x 38mm) | |
| Number of Circuits | 1 | |
| Voltage | 690V | |
| Current Rating | 32A | |
| Mounting Type | DIN Rail | |
| Orientation | - | |
| Termination Style | Screw Terminal | |
| Contact Material | - | |
| Contact Finish | - | |
| Standard Package | 6 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CHM1DN | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CHM1DN is in stock for immediate shipping now. We are the distributor of Eaton all series components. The condition of CHM1DN is new and unused, you can buy CHM1DN Eaton with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CHM1DN.
