| Manufacturer Part Number: | CHM-6-65-80-18-AA00-F2-3 |
|---|---|
| Manufacturer: | Luminus Devices Inc. |
| Product Category: | LED Lighting - COBs, Engines, Modules |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

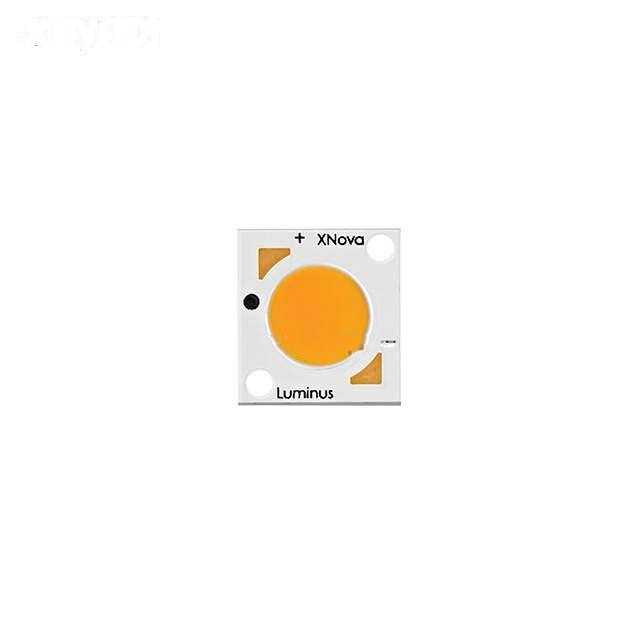

| Description: | LED Lighting COBs, Engines, Modules Chip On Board (COB) CHM-6 White, Cool Square |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CHM-6-65-80-18-AA00-F2-3 Datasheet |
| Internal Part Number | 898-CHM-6-65-80-18-AA00-F2-3 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Lighting Product Selector | |
| Category | Optoelectronics | |
| Family | LED Lighting - COBs, Engines, Modules | |
| Manufacturer | Luminus Devices Inc. | |
| Series | CHM-6 | |
| Packaging | Tray | |
| Part Status | Active | |
| Type | Chip On Board (COB) | |
| Color | White, Cool | |
| CCT (K) | 6500K 3-Step MacAdam Ellipse | |
| Wavelength | - | |
| Configuration | Square | |
| Flux @ Current/Temperature - Test | 710 lm (Typ) | |
| Current - Test | - | |
| Temperature - Test | 85°C | |
| Voltage - Forward (Vf) (Typ) | 18V | |
| Lumens/Watt @ Current - Test | - | |
| Current - Max | - | |
| CRI (Color Rendering Index) | 80 | |
| Viewing Angle | 120° | |
| Features | - | |
| Size / Dimension | 9.90mm L x 9.90mm W | |
| Height | 1.37mm | |
| Light Emitting Surface (LES) | 6.30mm Diameter | |
| Lens Type | Flat | |
| Standard Package | 400 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CHM-6-65-80-18-AA00-F2-3 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CHM-6-65-80-18-AA00-F2-3 is in stock for immediate shipping now. We are the distributor of Luminus Devices Inc. all series components. The condition of CHM-6-65-80-18-AA00-F2-3 is new and unused, you can buy CHM-6-65-80-18-AA00-F2-3 Luminus Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CHM-6-65-80-18-AA00-F2-3.
