Manufacturer Part Number: | CHG-1014-001010-KCP |
---|---|
Manufacturer: | 3M |
Product Category: | Rectangular Connectors - Free Hanging, Panel Mount |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

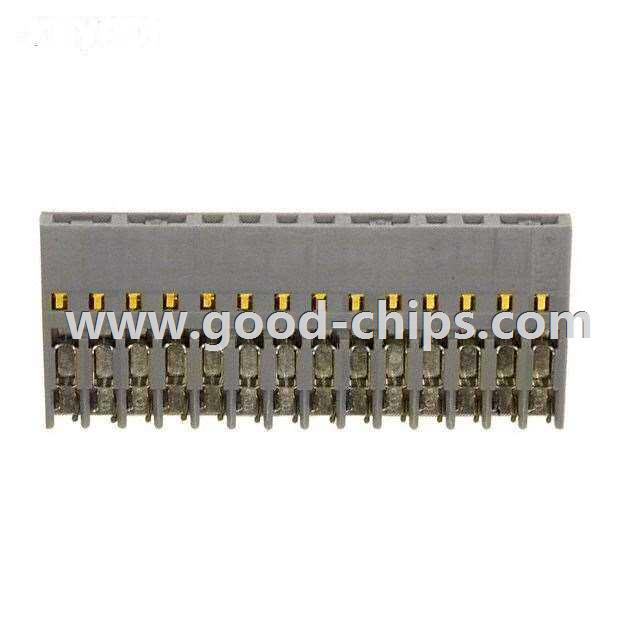

Description: | 14 Position Rectangular Receptacle Connector IDC Gold 26-28 AWG |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | CHG-1014-001010-KCP Datasheet |
Internal Part Number | 898-CHG-1014-001010-KCP | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | IDC Wiremount Connectors Primer | |
Category | Connectors, Interconnects | |
Family | Rectangular Connectors - Free Hanging, Panel Mount | |
Manufacturer | 3M | |
Series | CHG | |
Packaging | Bulk | |
Part Status | Active | |
Connector Type | Receptacle | |
Contact Type | Female Socket | |
Number of Positions | 14 | |
Pitch | 0.100" (2.54mm) | |
Number of Rows | 1 | |
Row Spacing | - | |
Mounting Type | Free Hanging (In-Line) | |
Fastening Type | - | |
Cable Termination | IDC | |
Wire Type | Discrete or Ribbon Cable | |
Wire Gauge | 26-28 AWG | |
Features | Closed End | |
Contact Finish | Gold | |
Contact Finish Thickness | 30µin (0.76µm) | |
Color | Gray | |
Standard Package | 100 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | CHG-1014-001010-KCP | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
CHG-1014-001010-KCP is in stock for immediate shipping now. We are the distributor of 3M all series components. The condition of CHG-1014-001010-KCP is new and unused, you can buy CHG-1014-001010-KCP 3M with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CHG-1014-001010-KCP.
