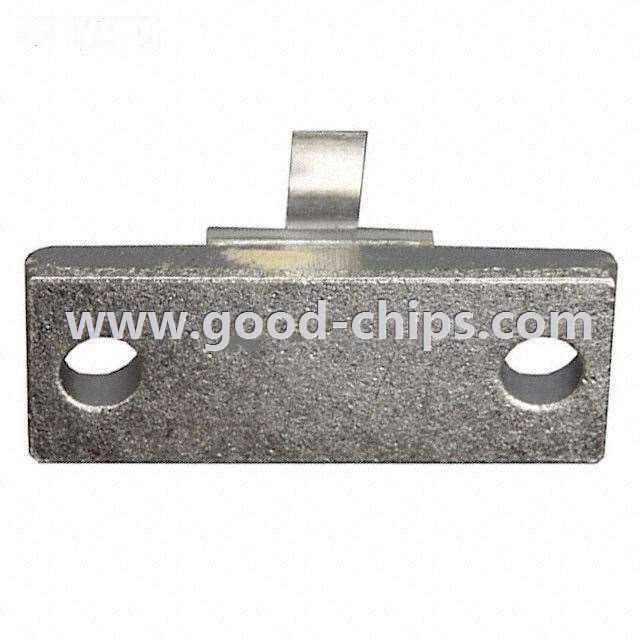

| Manufacturer Part Number: | CHF9838CNF500L |
|---|---|
| Manufacturer: | Bourns Inc. |
| Product Category: | Chassis Mount Resistors |
| Available Quantity: | 9043 Pieces |
| Unit Price: | Quote by Email |
| Description: | RES CHAS MNT 50 OHM 5% 250W |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CHF9838CNF500L Datasheet |
| Internal Part Number | 898-CHF9838CNF500L | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Power Resistor | |
| 3D Model | CHF9838CNF.stp | |
| PCN Obsolescence/ EOL | CHF Series Dec/2015 | |
| PCN Part Status Change | Multiple Devices Optimization Plans Jul/2016 | |
| Online Catalog | CHF-RF Power Series | |
| Category | Resistors | |
| Family | Chassis Mount Resistors | |
| Manufacturer | Bourns Inc. | |
| Series | CHF - RF Power | |
| Packaging | Tray | |
| Part Status | Last Time Buy | |
| Resistance (Ohms) | 50 | |
| Tolerance | ±5% | |
| Power (Watts) | 250W | |
| Composition | Thick Film | |
| Temperature Coefficient | - | |
| Operating Temperature | -55°C ~ 150°C | |
| Features | RF, High Frequency | |
| Coating, Housing Type | Aluminum Oxide | |
| Mounting Feature | Flanges | |
| Size / Dimension | 0.975" L x 0.375" W (24.77mm x 9.53mm) | |
| Height | 0.194" (4.92mm) | |
| Lead Style | Tab | |
| Package / Case | Flat Box, Terminator | |
| Standard Package | 50 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CHF9838CNF500L | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CHF9838CNF500L is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of CHF9838CNF500L is new and unused, you can buy CHF9838CNF500L Bourns Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CHF9838CNF500L.
