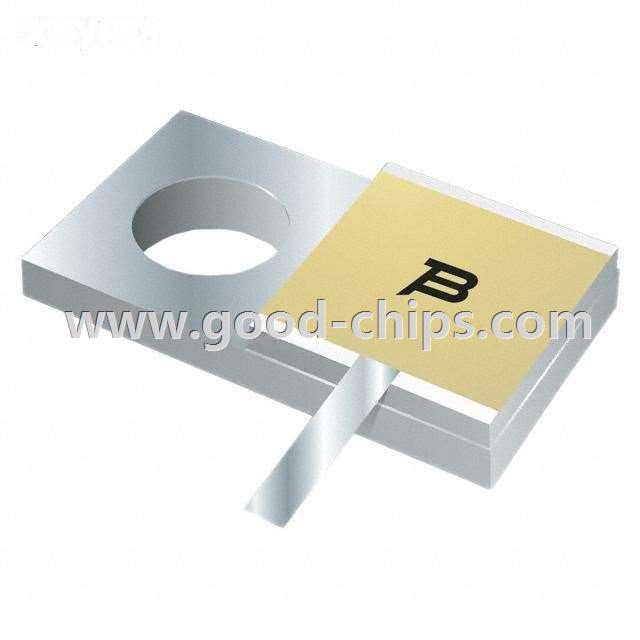

-SERIES.jpg)
| Manufacturer Part Number: | CHF5225CAF500R |
|---|---|
| Manufacturer: | Bourns Inc. |
| Product Category: | Chassis Mount Resistors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | RES CHAS MNT 50 OHM 5% 20W |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CHF5225CAF500R Datasheet |
| Internal Part Number | 898-CHF5225CAF500R | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | CHF5225CAF.stp | |
| PCN Obsolescence/ EOL | CHF Series Dec/2015 | |
| Category | Resistors | |
| Family | Chassis Mount Resistors | |
| Manufacturer | Bourns Inc. | |
| Series | CHF - RF Power | |
| Packaging | Bulk | |
| Part Status | Last Time Buy | |
| Resistance (Ohms) | 50 | |
| Tolerance | ±5% | |
| Power (Watts) | 20W | |
| Composition | Thick Film | |
| Temperature Coefficient | - | |
| Operating Temperature | -55°C ~ 150°C | |
| Features | RF, High Frequency | |
| Coating, Housing Type | Aluminum Oxide | |
| Mounting Feature | Flanges | |
| Size / Dimension | 0.516" L x 0.250" W (13.10mm x 6.35mm) | |
| Height | 0.105" (2.67mm) | |
| Lead Style | Tab | |
| Package / Case | Flat Box, Terminator | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CHF5225CAF500R | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CHF5225CAF500R is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of CHF5225CAF500R is new and unused, you can buy CHF5225CAF500R Bourns Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CHF5225CAF500R.
