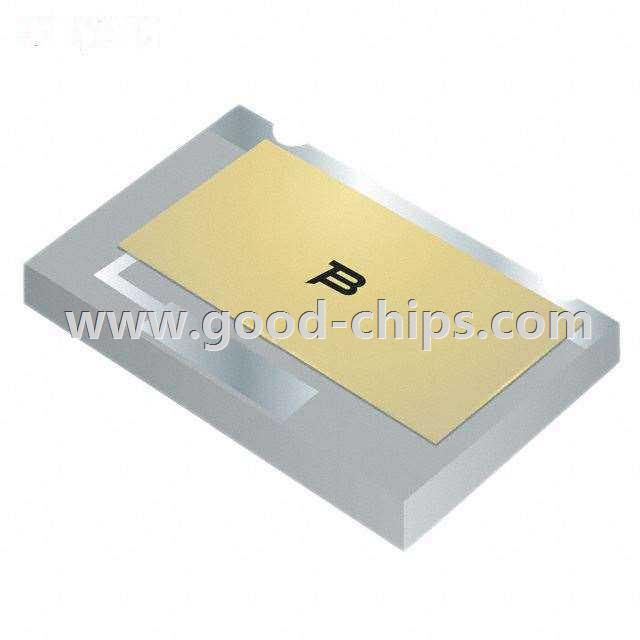

| Manufacturer Part Number: | CHF3523CNT500LW |
|---|---|
| Manufacturer: | Bourns Inc. |
| Product Category: | Chip Resistor - Surface Mount |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | RES SMD 50 OHM 5% 150W 3523 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CHF3523CNT500LW Datasheet |
| Internal Part Number | 898-CHF3523CNT500LW | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | CHF3523CNT.stp | |
| PCN Obsolescence/ EOL | CHF Series Dec/2015 | |
| Category | Resistors | |
| Family | Chip Resistor - Surface Mount | |
| Manufacturer | Bourns Inc. | |
| Series | CHF - RF Power | |
| Packaging | Bulk | |
| Part Status | Last Time Buy | |
| Resistance (Ohms) | 50 | |
| Tolerance | ±5% | |
| Power (Watts) | 150W | |
| Composition | Thick Film | |
| Features | RF, High Frequency | |
| Temperature Coefficient | - | |
| Operating Temperature | -55°C ~ 150°C | |
| Package / Case | 3523 | |
| Supplier Device Package | 3523 | |
| Size / Dimension | 0.350" L x 0.230" W (8.89mm x 5.84mm) | |
| Height | 0.039" (1.00mm) | |
| Number of Terminations | 2 | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CHF3523CNT500LW | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CHF3523CNT500LW is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of CHF3523CNT500LW is new and unused, you can buy CHF3523CNT500LW Bourns Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CHF3523CNT500LW.
