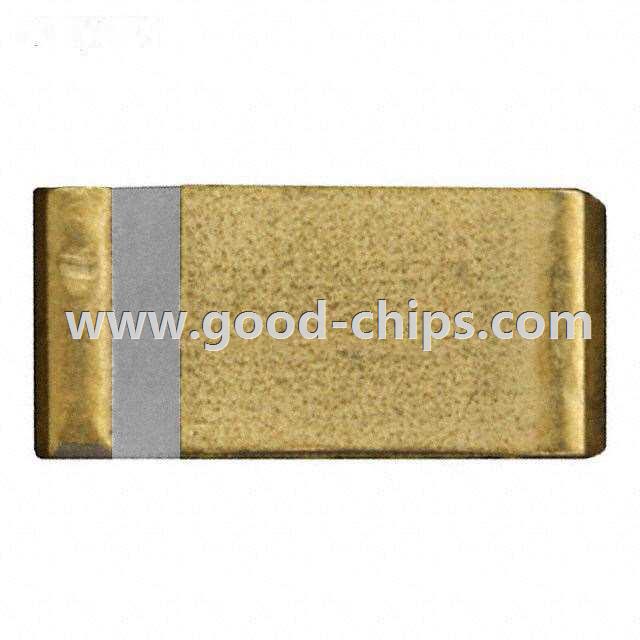

Manufacturer Part Number: | CHF2010CNP500LX |
---|---|
Manufacturer: | Bourns Inc. |
Product Category: | Chip Resistor - Surface Mount |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | RES SMD 50 OHM 5% 10W 2010 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | CHF2010CNP500LX Datasheet |
Internal Part Number | 898-CHF2010CNP500LX | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Power Resistor | |
RoHS Information | CHF2010CNP500LXE Material Declaration | |
3D Model | CHF2010CNP500LX.stp | |
PCN Obsolescence/ EOL | CHF Series Dec/2015 | |
PCN Design/Specification | CHF2010 Model Dimension Jan/2008 | |
Online Catalog | CHF - RF Power Series | |
Category | Resistors | |
Family | Chip Resistor - Surface Mount | |
Manufacturer | Bourns Inc. | |
Series | CHF - RF Power | |
Packaging | Bulk | |
Part Status | Last Time Buy | |
Resistance (Ohms) | 50 | |
Tolerance | ±5% | |
Power (Watts) | 10W | |
Composition | Thick Film | |
Features | RF, High Frequency | |
Temperature Coefficient | - | |
Operating Temperature | -55°C ~ 150°C | |
Package / Case | 2010 (5025 Metric) | |
Supplier Device Package | 2010 | |
Size / Dimension | 0.209" L x 0.106" W (5.30mm x 2.70mm) | |
Height | 0.047" (1.20mm) | |
Number of Terminations | 2 | |
Standard Package | 100 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | CHF2010CNP500LX | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
CHF2010CNP500LX is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of CHF2010CNP500LX is new and unused, you can buy CHF2010CNP500LX Bourns Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CHF2010CNP500LX.
