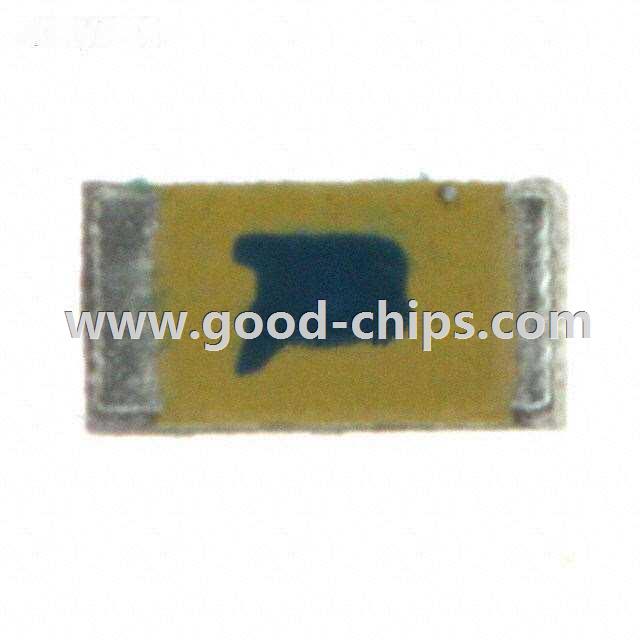

| Manufacturer Part Number: | CHF1206CNT500LW |
|---|---|
| Manufacturer: | Bourns Inc. |
| Product Category: | Chip Resistor - Surface Mount |
| Available Quantity: | 9371 Pieces |
| Unit Price: | Quote by Email |
| Description: | RES SMD 50 OHM 5% 20W 1206 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CHF1206CNT500LW Datasheet |
| Internal Part Number | 898-CHF1206CNT500LW | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Power Resistor | |
| RoHS Information | CHF1206CNT500LW Material Declaration | |
| 3D Model | CHF1206CNT.stp | |
| PCN Obsolescence/ EOL | CHF Series Dec/2015 | |
| PCN Part Status Change | Multiple Devices Optimization Plans Jul/2016 | |
| Online Catalog | CHF - RF Power Series | |
| Category | Resistors | |
| Family | Chip Resistor - Surface Mount | |
| Manufacturer | Bourns Inc. | |
| Series | CHF - RF Power | |
| Packaging | Bulk | |
| Part Status | Last Time Buy | |
| Resistance (Ohms) | 50 | |
| Tolerance | ±5% | |
| Power (Watts) | 20W | |
| Composition | Thick Film | |
| Features | RF, High Frequency | |
| Temperature Coefficient | - | |
| Operating Temperature | -55°C ~ 150°C | |
| Package / Case | 1206 (3216 Metric) | |
| Supplier Device Package | 1206 | |
| Size / Dimension | 0.120" L x 0.062" W (3.05mm x 1.57mm) | |
| Height | 0.025" (0.64mm) | |
| Number of Terminations | 2 | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CHF1206CNT500LW | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CHF1206CNT500LW is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of CHF1206CNT500LW is new and unused, you can buy CHF1206CNT500LW Bourns Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CHF1206CNT500LW.
