Manufacturer Part Number: | CGB1T3X6S0G104M022BB |
---|---|
Manufacturer: | TDK Corporation |
Product Category: | Ceramic Capacitors |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

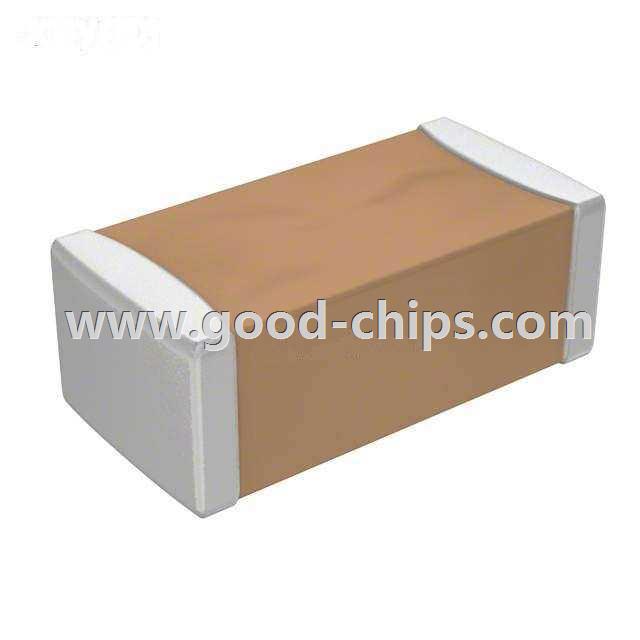

Description: | 0.10µF 4V Ceramic Capacitor X6S 0201 (0603 Metric) 0.024" L x 0.012" W (0.60mm x 0.30mm) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | CGB1T3X6S0G104M022BB Datasheet |
Internal Part Number | 898-CGB1T3X6S0G104M022BB | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | SEAT, CCV, and TVCL Design Tools Guide to Replacing an Electrolytic Capacitor with an MLCC | |
Video File | High Capacitance Capacitor Measurement Tutorial | |
RoHS Information | RoHS Certificate-MLCC | |
Featured Product | CGB Series Capacitors | |
PCN Part Number | MLCC Part Number Change 30/Nov/2012 | |
EDA / CAD Models | Download from Accelerated Designs | |
Online Catalog | CGB Series | |
Category | Capacitors | |
Family | Ceramic Capacitors | |
Manufacturer | TDK Corporation | |
Series | CGB | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Capacitance | 0.10µF | |
Tolerance | ±20% | |
Voltage - Rated | 4V | |
Temperature Coefficient | X6S | |
Mounting Type | Surface Mount, MLCC | |
Operating Temperature | -55°C ~ 105°C | |
Applications | General Purpose | |
Ratings | - | |
Package / Case | 0201 (0603 Metric) | |
Size / Dimension | 0.024" L x 0.012" W (0.60mm x 0.30mm) | |
Height - Seated (Max) | - | |
Thickness (Max) | 0.009" (0.22mm) | |
Lead Spacing | - | |
Features | Low Profile | |
Lead Style | - | |
Standard Package | 15,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | CGB1T3X6S0G104M022BB | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
CGB1T3X6S0G104M022BB is in stock for immediate shipping now. We are the distributor of TDK Corporation all series components. The condition of CGB1T3X6S0G104M022BB is new and unused, you can buy CGB1T3X6S0G104M022BB TDK Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CGB1T3X6S0G104M022BB.
