Manufacturer Part Number: | CGA6M4X7R2J683M200AA |
---|---|
Manufacturer: | TDK Corporation |
Product Category: | Ceramic Capacitors |
Available Quantity: | 10010 Pieces |
Unit Price: | Quote by Email |

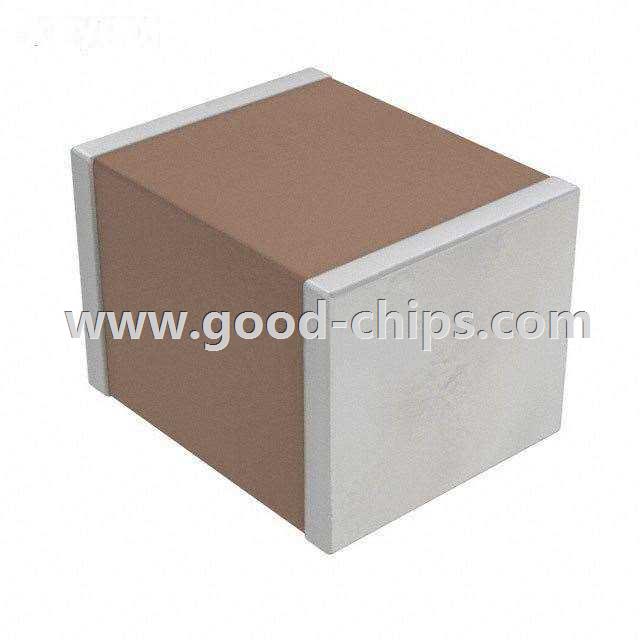

Description: | 0.068µF 630V Ceramic Capacitor X7R 1210 (3225 Metric) 0.126" L x 0.098" W (3.20mm x 2.50mm) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | CGA6M4X7R2J683M200AA Datasheet |
Internal Part Number | 898-CGA6M4X7R2J683M200AA | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | CGA Series for Automotive Applications SEAT, CCV, and TVCL Design Tools Guide to Replacing an Electrolytic Capacitor with an MLCC | |
Video File | High Capacitance Capacitor Measurement Tutorial | |
RoHS Information | RoHS Certificate-MLCC | |
Featured Product | CGA Series MLCC Capacitors | |
EDA / CAD Models | Download from Accelerated Designs | |
Online Catalog | CGA Series, Automotive General, Mid and High Voltage | |
Category | Capacitors | |
Family | Ceramic Capacitors | |
Manufacturer | TDK Corporation | |
Series | CGA | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Capacitance | 0.068µF | |
Tolerance | ±20% | |
Voltage - Rated | 630V | |
Temperature Coefficient | X7R | |
Mounting Type | Surface Mount, MLCC | |
Operating Temperature | -55°C ~ 125°C | |
Applications | Automotive | |
Ratings | AEC-Q200 | |
Package / Case | 1210 (3225 Metric) | |
Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) | |
Height - Seated (Max) | - | |
Thickness (Max) | 0.087" (2.20mm) | |
Lead Spacing | - | |
Features | - | |
Lead Style | - | |
Standard Package | 1,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | CGA6M4X7R2J683M200AA | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
CGA6M4X7R2J683M200AA is in stock for immediate shipping now. We are the distributor of TDK Corporation all series components. The condition of CGA6M4X7R2J683M200AA is new and unused, you can buy CGA6M4X7R2J683M200AA TDK Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CGA6M4X7R2J683M200AA.
