Manufacturer Part Number: | CGA4C2NP02A122J060AA |
---|---|
Manufacturer: | TDK Corporation |
Product Category: | Ceramic Capacitors |
Available Quantity: | 16700 Pieces |
Unit Price: | Quote by Email |

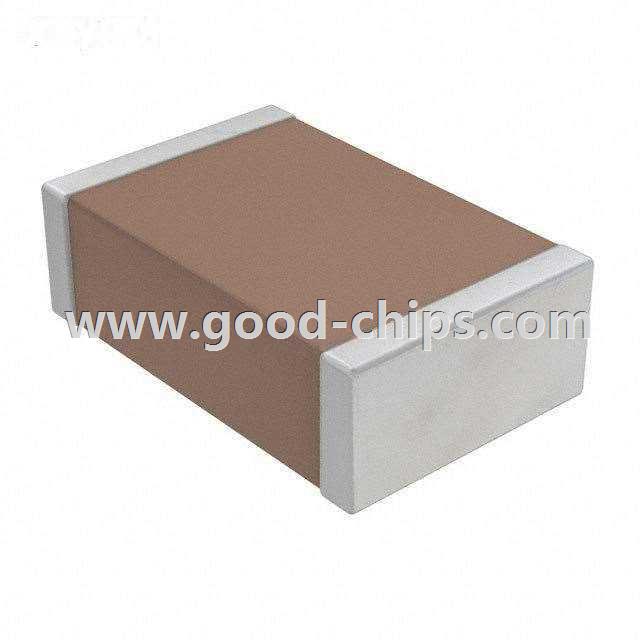

Description: | 1200pF 100V Ceramic Capacitor C0G, NP0 0805 (2012 Metric) 0.079" L x 0.049" W (2.00mm x 1.25mm) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | CGA4C2NP02A122J060AA Datasheet |
Internal Part Number | 898-CGA4C2NP02A122J060AA | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | CGA Series for Automotive Applications SEAT, CCV, and TVCL Design Tools Guide to Replacing an Electrolytic Capacitor with an MLCC | |
Video File | High Capacitance Capacitor Measurement Tutorial | |
RoHS Information | RoHS Certificate-MLCC | |
Featured Product | CGA Series MLCC Capacitors | |
PCN Part Number | MLCC Part Number Change 30/Nov/2012 | |
EDA / CAD Models | Download from Accelerated Designs | |
Online Catalog | CGA Series, Automotive General, Mid and High Voltage | |
Category | Capacitors | |
Family | Ceramic Capacitors | |
Manufacturer | TDK Corporation | |
Series | CGA | |
Packaging | Cut Tape (CT) | |
Part Status | Active | |
Capacitance | 1200pF | |
Tolerance | ±5% | |
Voltage - Rated | 100V | |
Temperature Coefficient | C0G, NP0 | |
Mounting Type | Surface Mount, MLCC | |
Operating Temperature | -55°C ~ 150°C | |
Applications | Automotive | |
Ratings | AEC-Q200 | |
Package / Case | 0805 (2012 Metric) | |
Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) | |
Height - Seated (Max) | - | |
Thickness (Max) | 0.030" (0.75mm) | |
Lead Spacing | - | |
Features | High Temperature | |
Lead Style | - | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | CGA4C2NP02A122J060AA | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
CGA4C2NP02A122J060AA is in stock for immediate shipping now. We are the distributor of TDK Corporation all series components. The condition of CGA4C2NP02A122J060AA is new and unused, you can buy CGA4C2NP02A122J060AA TDK Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CGA4C2NP02A122J060AA.
