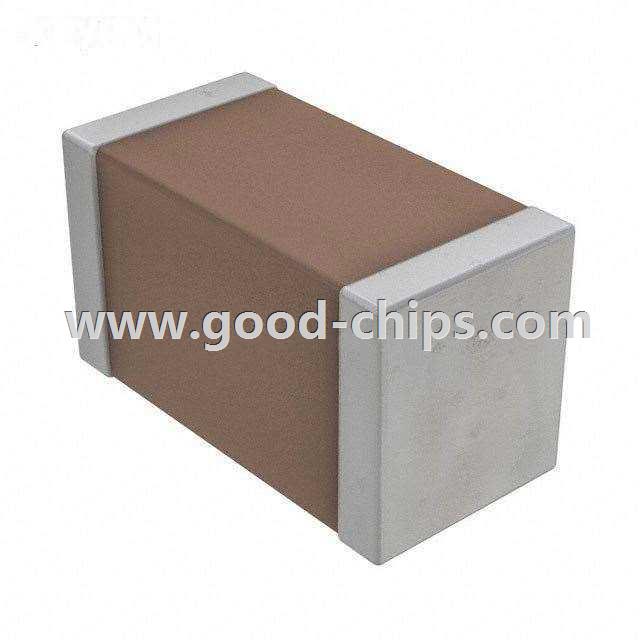

CGA3E2C0G1H020C080AA

CGA3E2C0G1H020C080AA
Manufacturer Part Number:CGA3E2C0G1H020C080AA
Manufacturer:
Product Category:Ceramic Capacitors
Available Quantity:13010 Pieces
Unit Price:Quote by Email
Description:2pF 50V Ceramic Capacitor C0G, NP0 0603 (1608 Metric) 0.063" L x 0.031" W (1.60mm x 0.80mm)
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: CGA3E2C0G1H020C080AA Datasheet
CGA3E2C0G1H020C080AA´s Parameters
Internal Part Number898-CGA3E2C0G1H020C080AA
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
Product Training ModulesCGA Series for Automotive Applications
SEAT, CCV, and TVCL Design Tools
Guide to Replacing an Electrolytic Capacitor with an MLCC
Video FileHigh Capacitance Capacitor Measurement Tutorial
RoHS InformationCGA Series, RoHS Cert of Compliance
Featured ProductCGA Series MLCC Capacitors
PCN Part NumberMLCC Part Number Change 30/Nov/2012
EDA / CAD Models Download from Accelerated Designs
Online Catalog CGA Series, Automotive General, Mid and High Voltage
CategoryCapacitors
FamilyCeramic Capacitors
ManufacturerTDK Corporation
SeriesCGA
PackagingTape & Reel (TR)
Part StatusActive
Capacitance2pF
Tolerance±0.25pF
Voltage - Rated50V
Temperature CoefficientC0G, NP0
Mounting TypeSurface Mount, MLCC
Operating Temperature-55°C ~ 125°C
ApplicationsAutomotive
RatingsAEC-Q200
Package / Case0603 (1608 Metric)
Size / Dimension0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max)-
Thickness (Max)0.035" (0.90mm)
Lead Spacing-
Features-
Lead Style-
Standard Package 4,000
Weight0.001 KG
ApplicationEmail for details
Replacement PartCGA3E2C0G1H020C080AA
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

CGA3E2C0G1H020C080AA is in stock for immediate shipping now. We are the distributor of TDK Corporation all series components. The condition of CGA3E2C0G1H020C080AA is new and unused, you can buy CGA3E2C0G1H020C080AA TDK Corporation with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for CGA3E2C0G1H020C080AA.
