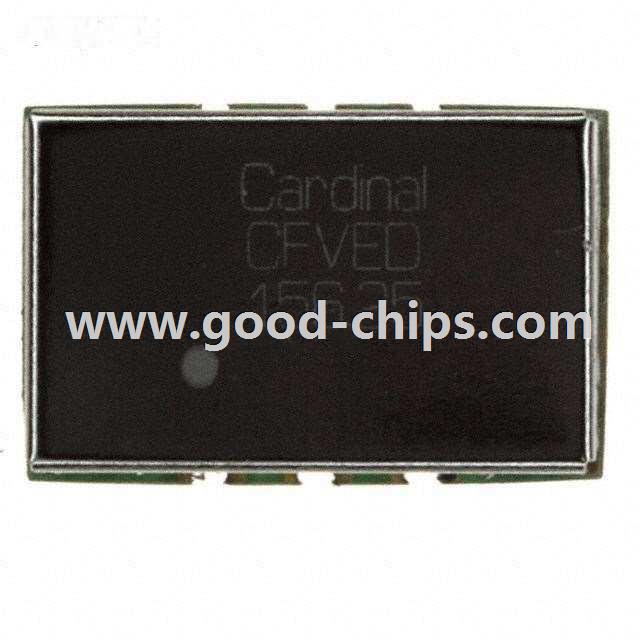

Manufacturer Part Number: | CFVED-A7BP-156.25TS |
---|---|
Manufacturer: | Cardinal Components Inc. |
Product Category: | Oscillators |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 156.25MHz LVPECL VCXO Oscillator Surface Mount 3.3V 100mA Enable/Disable |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | CFVED-A7BP-156.25TS Datasheet |
Internal Part Number | 898-CFVED-A7BP-156.25TS | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Crystals and Oscillators | |
Family | Oscillators | |
Manufacturer | Cardinal Components Inc. | |
Series | CFVED | |
Packaging | Bulk | |
Part Status | Obsolete | |
Type | VCXO | |
Frequency | 156.25MHz | |
Function | Enable/Disable | |
Output | LVPECL | |
Voltage - Supply | 3.3V | |
Frequency Stability | ±50ppm | |
Operating Temperature | -40°C ~ 85°C | |
Current - Supply (Max) | 100mA | |
Ratings | - | |
Mounting Type | Surface Mount | |
Size / Dimension | 0.551" L x 0.354" W (14.00mm x 9.00mm) | |
Height | 0.138" (3.50mm) | |
Package / Case | 6-SMD, No Lead (DFN, LCC) | |
Current - Supply (Disable) (Max) | - | |
Standard Package | 10 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | CFVED-A7BP-156.25TS | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
CFVED-A7BP-156.25TS is in stock for immediate shipping now. We are the distributor of Cardinal Components Inc. all series components. The condition of CFVED-A7BP-156.25TS is new and unused, you can buy CFVED-A7BP-156.25TS Cardinal Components Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CFVED-A7BP-156.25TS.
