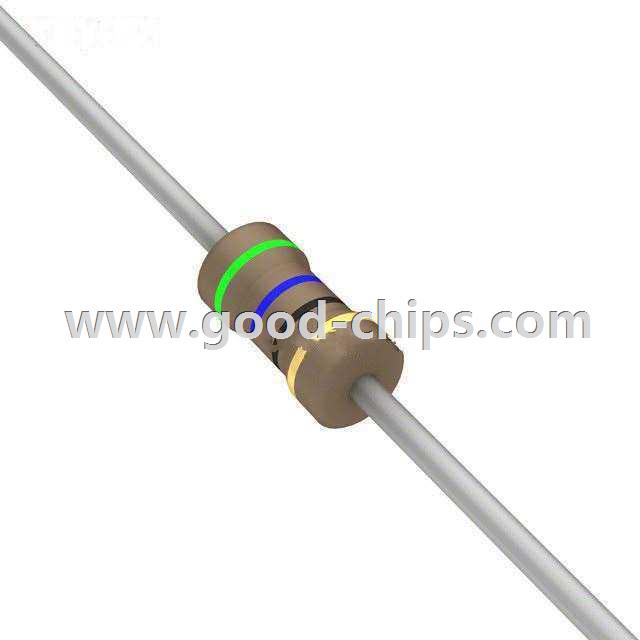

| Manufacturer Part Number: | CFM14JT56R0 |
|---|---|
| Manufacturer: | Stackpole Electronics Inc. |
| Product Category: | Through Hole Resistors |
| Available Quantity: | 14010 Pieces |
| Unit Price: | Quote by Email |
| Description: | RES 56 OHM 1/4W 5% CF MINI |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CFM14JT56R0 Datasheet |
| Internal Part Number | 898-CFM14JT56R0 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | RoHS Compliance | |
| PCN Part Number | Global Part Number 9/Aug/2010 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | CFM Series | |
| Category | Resistors | |
| Family | Through Hole Resistors | |
| Manufacturer | Stackpole Electronics Inc. | |
| Series | CFM | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Resistance (Ohms) | 56 | |
| Tolerance | ±5% | |
| Power (Watts) | 0.25W, 1/4W | |
| Composition | Carbon Film | |
| Features | Flame Retardant Coating, Safety | |
| Temperature Coefficient | 0/ -400ppm/°C | |
| Operating Temperature | -55°C ~ 155°C | |
| Package / Case | Axial | |
| Supplier Device Package | Axial | |
| Size / Dimension | 0.067" Dia x 0.130" L (1.70mm x 3.30mm) | |
| Height | - | |
| Number of Terminations | 2 | |
| Standard Package | 5,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CFM14JT56R0 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CFM14JT56R0 is in stock for immediate shipping now. We are the distributor of Stackpole Electronics Inc. all series components. The condition of CFM14JT56R0 is new and unused, you can buy CFM14JT56R0 Stackpole Electronics Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CFM14JT56R0.
