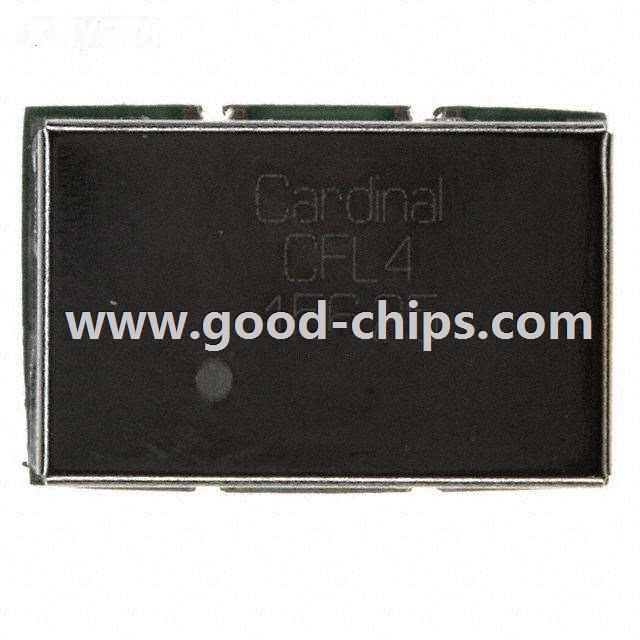

| Manufacturer Part Number: | CFL4-A7BP-156.25 |
|---|---|
| Manufacturer: | Cardinal Components Inc. |
| Product Category: | Oscillators |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 156.25MHz LVDS XO (Standard) Oscillator Surface Mount 3.3V 100mA |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CFL4-A7BP-156.25 Datasheet |
| Internal Part Number | 898-CFL4-A7BP-156.25 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Crystals and Oscillators | |
| Family | Oscillators | |
| Manufacturer | Cardinal Components Inc. | |
| Series | CFL4 | |
| Packaging | Bulk | |
| Part Status | Obsolete | |
| Type | XO (Standard) | |
| Frequency | 156.25MHz | |
| Function | - | |
| Output | LVDS | |
| Voltage - Supply | 3.3V | |
| Frequency Stability | ±50ppm | |
| Operating Temperature | -40°C ~ 85°C | |
| Current - Supply (Max) | 100mA | |
| Ratings | - | |
| Mounting Type | Surface Mount | |
| Size / Dimension | 0.551" L x 0.354" W (14.00mm x 9.00mm) | |
| Height | 0.138" (3.50mm) | |
| Package / Case | 4-SMD, No Lead (DFN, LCC) | |
| Current - Supply (Disable) (Max) | - | |
| Standard Package | 10 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CFL4-A7BP-156.25 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CFL4-A7BP-156.25 is in stock for immediate shipping now. We are the distributor of Cardinal Components Inc. all series components. The condition of CFL4-A7BP-156.25 is new and unused, you can buy CFL4-A7BP-156.25 Cardinal Components Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CFL4-A7BP-156.25.
