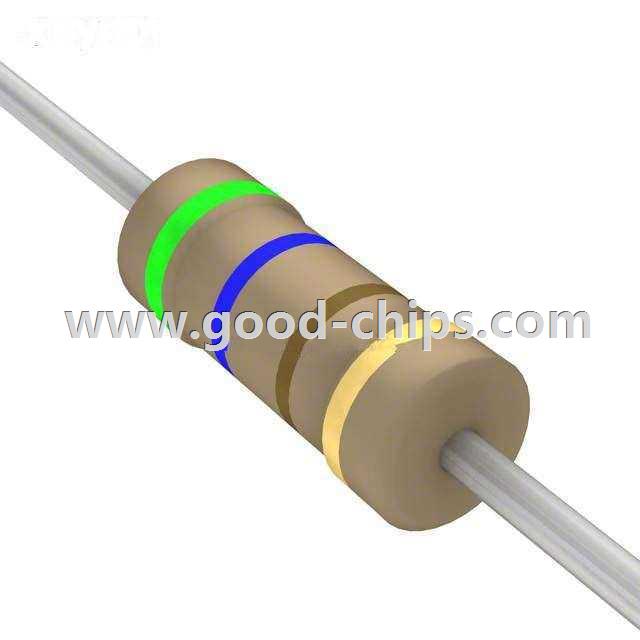

| Manufacturer Part Number: | CF14JT560R |
|---|---|
| Manufacturer: | Stackpole Electronics Inc. |
| Product Category: | Through Hole Resistors |
| Available Quantity: | 244010 Pieces |
| Unit Price: | Quote by Email |
| Description: | RES 560 OHM 1/4W 5% CARBON FILM |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CF14JT560R Datasheet |
| Internal Part Number | 898-CF14JT560R | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | RoHS Compliance | |
| PCN Part Number | Global Part Number 9/Aug/2010 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | CF Series | |
| Category | Resistors | |
| Family | Through Hole Resistors | |
| Manufacturer | Stackpole Electronics Inc. | |
| Series | CF | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Resistance (Ohms) | 560 | |
| Tolerance | ±5% | |
| Power (Watts) | 0.25W, 1/4W | |
| Composition | Carbon Film | |
| Features | Flame Retardant Coating, Safety | |
| Temperature Coefficient | 0/ -400ppm/°C | |
| Operating Temperature | -55°C ~ 155°C | |
| Package / Case | Axial | |
| Supplier Device Package | Axial | |
| Size / Dimension | 0.091" Dia x 0.256" L (2.30mm x 6.50mm) | |
| Height | - | |
| Number of Terminations | 2 | |
| Standard Package | 5,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CF14JT560R | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CF14JT560R is in stock for immediate shipping now. We are the distributor of Stackpole Electronics Inc. all series components. The condition of CF14JT560R is new and unused, you can buy CF14JT560R Stackpole Electronics Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CF14JT560R.
