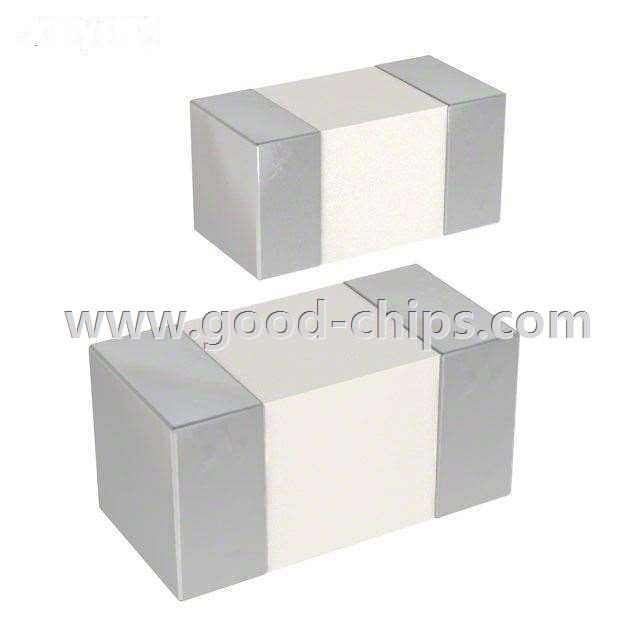

Manufacturer Part Number: | CE201210-R15J |
---|---|
Manufacturer: | Bourns Inc. |
Product Category: | Fixed Inductors |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 150nH Unshielded Multilayer Inductor 300mA 1 Ohm Max 0805 (2012 Metric) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | CE201210-R15J Datasheet |
Internal Part Number | 898-CE201210-R15J | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
3D Model | CE201210-R15J.stp | |
EDA / CAD Models | Download from Accelerated Designs | |
Online Catalog | CE201210 Series | |
Category | Inductors, Coils, Chokes | |
Family | Fixed Inductors | |
Manufacturer | Bourns Inc. | |
Series | CE201210 | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | Multilayer | |
Material - Core | Ceramic | |
Inductance | 150nH | |
Tolerance | ±5% | |
Current Rating | 300mA | |
Current - Saturation | - | |
Shielding | Unshielded | |
DC Resistance (DCR) | 1 Ohm Max | |
Q @ Freq | 22 @ 50MHz | |
Frequency - Self Resonant | 500MHz | |
Ratings | - | |
Operating Temperature | -55°C ~ 125°C | |
Frequency - Test | 50MHz | |
Mounting Type | Surface Mount | |
Package / Case | 0805 (2012 Metric) | |
Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) | |
Height - Seated (Max) | 0.041" (1.03mm) | |
Standard Package | 4,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | CE201210-R15J | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
CE201210-R15J is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of CE201210-R15J is new and unused, you can buy CE201210-R15J Bourns Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CE201210-R15J.
