| Manufacturer Part Number: | CDSC706-0504C |
|---|---|
| Manufacturer: | Bourns Inc. |
| Product Category: | TVS - Diodes |
| Available Quantity: | 12681 Pieces |
| Unit Price: | Quote by Email |
| Description: | TVS DIODE 5VWM 9VC SC706 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CDSC706-0504C Datasheet |
| Internal Part Number | 898-CDSC706-0504C | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | CDSC706-0504C.stp | |
| PCN Assembly/Origin | Select Diodes Aug/2013 | |
| Online Catalog | CDSC706-0504C Series | |
| Category | Circuit Protection | |
| Family | TVS - Diodes | |
| Manufacturer | Bourns Inc. | |
| Series | - | |
| Packaging | Digi-Reel® | |
| Part Status | Active | |
| Type | Steering (Rail to Rail) | |
| Unidirectional Channels | - | |
| Bidirectional Channels | 4 | |
| Voltage - Reverse Standoff (Typ) | 5V | |
| Voltage - Breakdown (Min) | 6V | |
| Voltage - Clamping (Max) @ Ipp | 9V | |
| Current - Peak Pulse (10/1000µs) | 6.5A (8/20µs) | |
| Power - Peak Pulse | - | |
| Power Line Protection | Yes | |
| Applications | General Purpose | |
| Capacitance @ Frequency | - | |
| Operating Temperature | -55°C ~ 85°C (TA) | |
| Mounting Type | Surface Mount | |

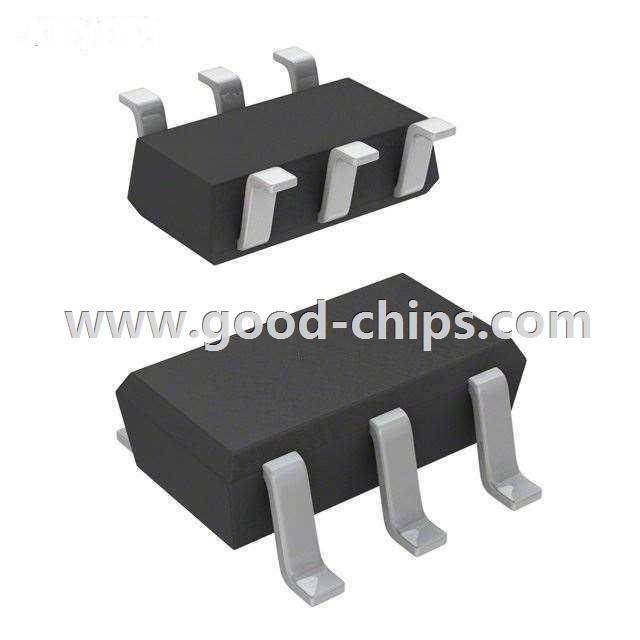

| Package / Case | 6-TSSOP, SC-88, SOT-363 | |
| Supplier Device Package | SC-70-6 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CDSC706-0504C | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CDSC706-0504C is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of CDSC706-0504C is new and unused, you can buy CDSC706-0504C Bourns Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CDSC706-0504C.
