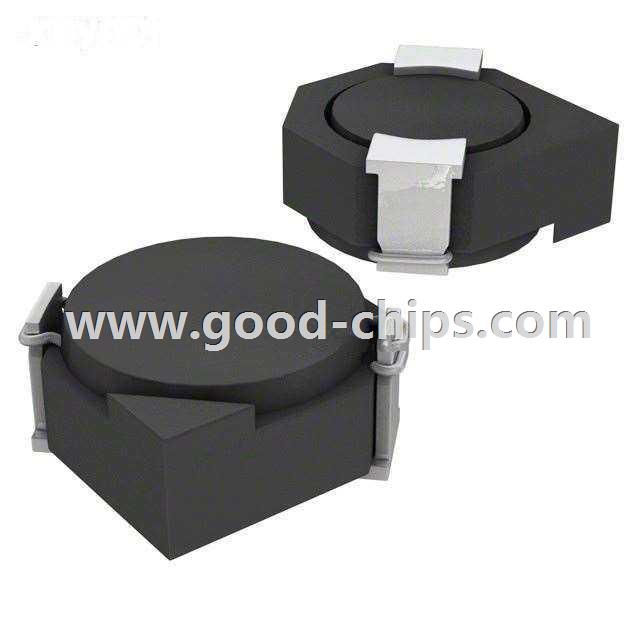

| Manufacturer Part Number: | CDRH2D18/LDNP-220NC |
|---|---|
| Manufacturer: | Sumida America Components Inc. |
| Product Category: | Fixed Inductors |
| Available Quantity: | 11010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 22µH Shielded Inductor 680mA 320 mOhm Max Nonstandard |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CDRH2D18/LDNP-220NC Datasheet |
| Internal Part Number | 898-CDRH2D18/LDNP-220NC | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Power Inductor Basics | |
| Online Catalog | CDRH Series | |
| Category | Inductors, Coils, Chokes | |
| Family | Fixed Inductors | |
| Manufacturer | Sumida America Components Inc. | |
| Series | CDRH2D18/LD | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | - | |
| Material - Core | Ferrite | |
| Inductance | 22µH | |
| Tolerance | ±30% | |
| Current Rating | 680mA | |
| Current - Saturation | 300mA | |
| Shielding | Shielded | |
| DC Resistance (DCR) | 320 mOhm Max | |
| Q @ Freq | - | |
| Frequency - Self Resonant | - | |
| Ratings | - | |
| Operating Temperature | -40°C ~ 105°C | |
| Frequency - Test | 100kHz | |
| Mounting Type | Surface Mount | |
| Package / Case | Nonstandard | |
| Size / Dimension | 0.118" L x 0.118" W (3.00mm x 3.00mm) | |
| Height - Seated (Max) | 0.079" (2.00mm) | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CDRH2D18/LDNP-220NC | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CDRH2D18/LDNP-220NC is in stock for immediate shipping now. We are the distributor of Sumida America Components Inc. all series components. The condition of CDRH2D18/LDNP-220NC is new and unused, you can buy CDRH2D18/LDNP-220NC Sumida America Components Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CDRH2D18/LDNP-220NC.
