Manufacturer Part Number: | CDM2208-800FP SL |
---|---|
Manufacturer: | Central Semiconductor Corp |
Product Category: | Transistors - FETs, MOSFETs - Single |
Available Quantity: | 9730 Pieces |
Unit Price: | Quote by Email |
Description: | MOSFET N-CH 8A 800V TO-220FP |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | CDM2208-800FP SL Datasheet |
Internal Part Number | 898-CDM2208-800FP SL | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | N-Channel Standard FETs | |
Category | Discrete Semiconductor Products | |
Family | Transistors - FETs, MOSFETs - Single | |
Manufacturer | Central Semiconductor Corp | |
Series | - | |
Packaging | Tube | |
Part Status | Active | |
FET Type | MOSFET N-Channel, Metal Oxide | |
FET Feature | Standard | |
Drain to Source Voltage (Vdss) | 800V | |
Current - Continuous Drain (Id) @ 25°C | 8A (Tc) | |
Rds On (Max) @ Id, Vgs | 1.6 Ohm @ 4A, 10V | |
Vgs(th) (Max) @ Id | 4V @ 250µA | |
Gate Charge (Qg) @ Vgs | 24.45nC @ 10V | |
Input Capacitance (Ciss) @ Vds | 1110pF @ 25V | |
Power - Max | 57W | |
Operating Temperature | -55°C ~ 150°C (TJ) | |
Mounting Type | Through Hole | |

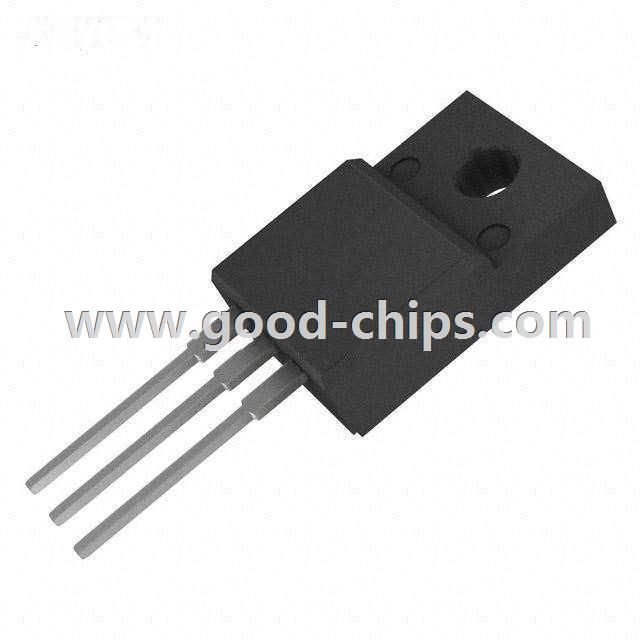

Package / Case | TO-220-3 Full Pack | |
Supplier Device Package | TO-220FP | |
Standard Package | 50 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | CDM2208-800FP SL | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
CDM2208-800FP SL is in stock for immediate shipping now. We are the distributor of Central Semiconductor Corp all series components. The condition of CDM2208-800FP SL is new and unused, you can buy CDM2208-800FP SL Central Semiconductor Corp with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CDM2208-800FP SL.
