| Manufacturer Part Number: | CDLL5522B |
|---|---|
| Manufacturer: | Microsemi Corporation |
| Product Category: | Diodes - Zener - Single |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Zener Diode 4.7V 500mW ±5% Surface Mount DO-213AB |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CDLL5522B Datasheet |
| Internal Part Number | 898-CDLL5522B | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Category | Discrete Semiconductor Products | |
| Family | Diodes - Zener - Single | |
| Manufacturer | Microsemi Corporation | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Voltage - Zener (Nom) (Vz) | 4.7V | |
| Tolerance | ±5% | |
| Power - Max | 500mW | |
| Impedance (Max) (Zzt) | 22 Ohm | |
| Current - Reverse Leakage @ Vr | 2µA @ 2V | |
| Voltage - Forward (Vf) (Max) @ If | 1.1V @ 200mA | |
| Operating Temperature | -65°C ~ 175°C | |
| Mounting Type | Surface Mount | |

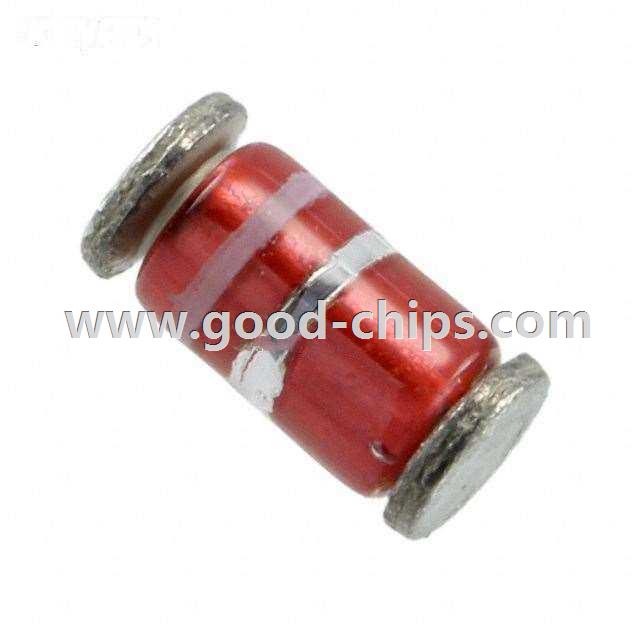

| Package / Case | DO-213AB, MELF | |
| Supplier Device Package | DO-213AB | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CDLL5522B | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CDLL5522B is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of CDLL5522B is new and unused, you can buy CDLL5522B Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CDLL5522B.
