| Manufacturer Part Number: | CDLL2810 |
|---|---|
| Manufacturer: | Microsemi Corporation |
| Product Category: | Diodes - Rectifiers - Single |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

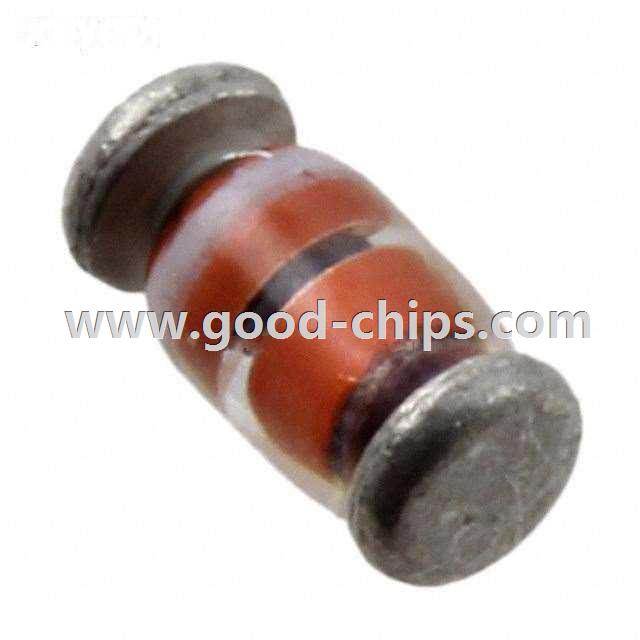

| Description: | Diode Schottky 20V 75mA Surface Mount DO-213AA |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CDLL2810 Datasheet |
| Internal Part Number | 898-CDLL2810 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Category | Discrete Semiconductor Products | |
| Family | Diodes - Rectifiers - Single | |
| Manufacturer | Microsemi Corporation | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Diode Type | Schottky | |
| Voltage - DC Reverse (Vr) (Max) | 20V | |
| Current - Average Rectified (Io) | 75mA | |
| Voltage - Forward (Vf) (Max) @ If | 1V @ 35mA | |
| Speed | Small Signal =< 200mA (Io), Any Speed | |
| Reverse Recovery Time (trr) | - | |
| Current - Reverse Leakage @ Vr | 100nA @ 15V | |
| Capacitance @ Vr, F | 2pF @ 0V, 1MHz | |
| Mounting Type | Surface Mount | |
| Package / Case | DO-213AA | |
| Supplier Device Package | DO-213AA | |
| Operating Temperature - Junction | -65°C ~ 150°C | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CDLL2810 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CDLL2810 is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of CDLL2810 is new and unused, you can buy CDLL2810 Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CDLL2810.
