| Manufacturer Part Number: | CDDFN6-0504P |
|---|---|
| Manufacturer: | Bourns Inc. |
| Product Category: | TVS - Diodes |
| Available Quantity: | 21010 Pieces |
| Unit Price: | Quote by Email |
| Description: | TVS DIODE 5VWM 12.5VC DFN6 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CDDFN6-0504P Datasheet |
| Internal Part Number | 898-CDDFN6-0504P | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | CDDFN6-0504P.stp | |
| PCN Assembly/Origin | Select Diodes Aug/2013 | |
| Online Catalog | CDDFN6-0504P Series | |
| Category | Circuit Protection | |
| Family | TVS - Diodes | |
| Manufacturer | Bourns Inc. | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Steering (Rail to Rail) | |
| Unidirectional Channels | - | |
| Bidirectional Channels | 4 | |
| Voltage - Reverse Standoff (Typ) | 5V | |
| Voltage - Breakdown (Min) | 6V | |
| Voltage - Clamping (Max) @ Ipp | 12.5V | |
| Current - Peak Pulse (10/1000µs) | 6.5A (8/20µs) | |
| Power - Peak Pulse | 150W | |
| Power Line Protection | Yes | |
| Applications | Ethernet | |
| Capacitance @ Frequency | - | |
| Operating Temperature | -55°C ~ 125°C (TA) | |
| Mounting Type | Surface Mount | |

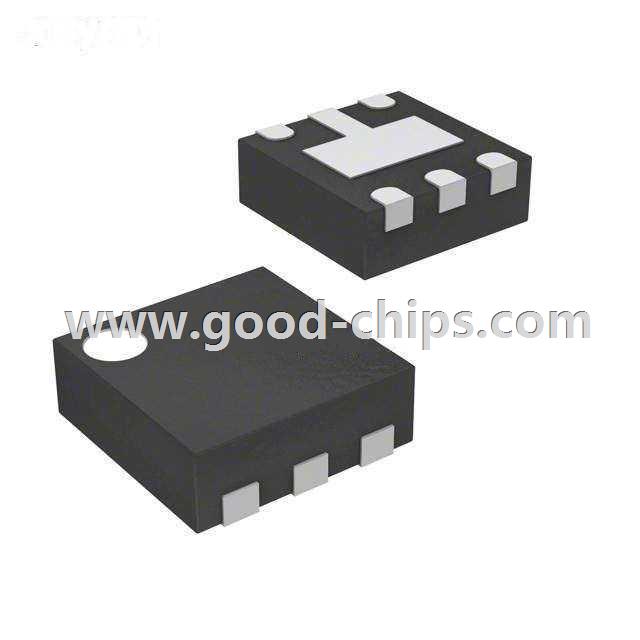

| Package / Case | 6-PowerUFDFN | |
| Supplier Device Package | 6-DFN (1.6x1.6) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CDDFN6-0504P | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CDDFN6-0504P is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of CDDFN6-0504P is new and unused, you can buy CDDFN6-0504P Bourns Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CDDFN6-0504P.
