Manufacturer Part Number: | CDDFN10-3324P |
---|---|
Manufacturer: | Bourns Inc. |
Product Category: | TVS - Diodes |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | TVS DIODE 3.3VWM 7.5VC DFN10 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | CDDFN10-3324P Datasheet |
Internal Part Number | 898-CDDFN10-3324P | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
3D Model | CDDFN10-3324P.stp | |
Online Catalog | CDDFN10-x Series | |
Category | Circuit Protection | |
Family | TVS - Diodes | |
Manufacturer | Bourns Inc. | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | Steering (Rail to Rail) | |
Unidirectional Channels | - | |
Bidirectional Channels | 4 | |
Voltage - Reverse Standoff (Typ) | 3.3V (Max) | |
Voltage - Breakdown (Min) | 4.5V | |
Voltage - Clamping (Max) @ Ipp | 7.5V | |
Current - Peak Pulse (10/1000µs) | 4A (8/20µs) | |
Power - Peak Pulse | 30W | |
Power Line Protection | Yes | |
Applications | HDMI | |
Capacitance @ Frequency | - | |
Operating Temperature | -55°C ~ 85°C (TJ) | |
Mounting Type | Surface Mount | |

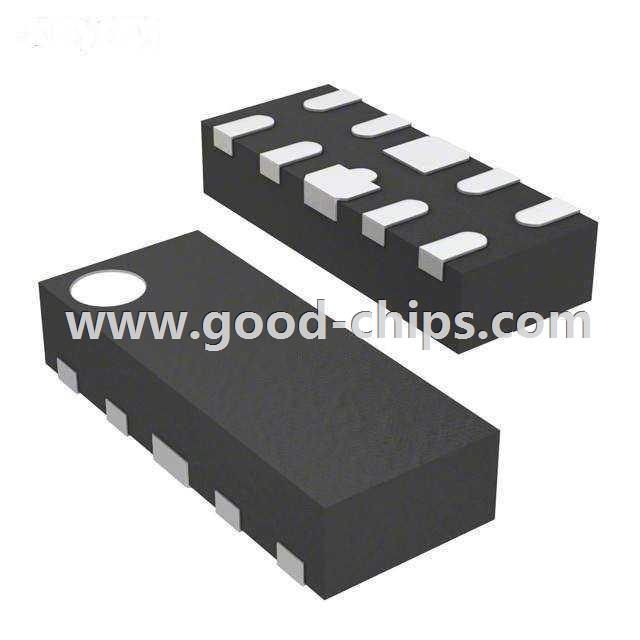

Package / Case | 10-UFDFN | |
Supplier Device Package | 10-DFN (2.5x1) | |
Standard Package | 3,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | CDDFN10-3324P | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
CDDFN10-3324P is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of CDDFN10-3324P is new and unused, you can buy CDDFN10-3324P Bourns Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CDDFN10-3324P.
