| Manufacturer Part Number: | CDBV3-54A-HF |
|---|---|
| Manufacturer: | Comchip Technology |
| Product Category: | Diodes - Rectifiers - Arrays |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Diode Array 1 Pair Common Anode Schottky 30V 200mA (DC) Surface Mount SC-70, SOT-323 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CDBV3-54A-HF Datasheet |
| Internal Part Number | 898-CDBV3-54A-HF | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | RoHS Declaration SOT-323 HF Series Material Declaration | |
| PCN Packaging | Label D/C Chg24/Mar/2016 | |
| Category | Discrete Semiconductor Products | |
| Family | Diodes - Rectifiers - Arrays | |
| Manufacturer | Comchip Technology | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Diode Configuration | 1 Pair Common Anode | |
| Diode Type | Schottky | |
| Voltage - DC Reverse (Vr) (Max) | 30V | |
| Current - Average Rectified (Io) (per Diode) | 200mA (DC) | |
| Voltage - Forward (Vf) (Max) @ If | 1V @ 100mA | |
| Speed | Small Signal =< 200mA (Io), Any Speed | |
| Reverse Recovery Time (trr) | 4ns | |
| Current - Reverse Leakage @ Vr | 2µA @ 25V | |
| Mounting Type | Surface Mount | |

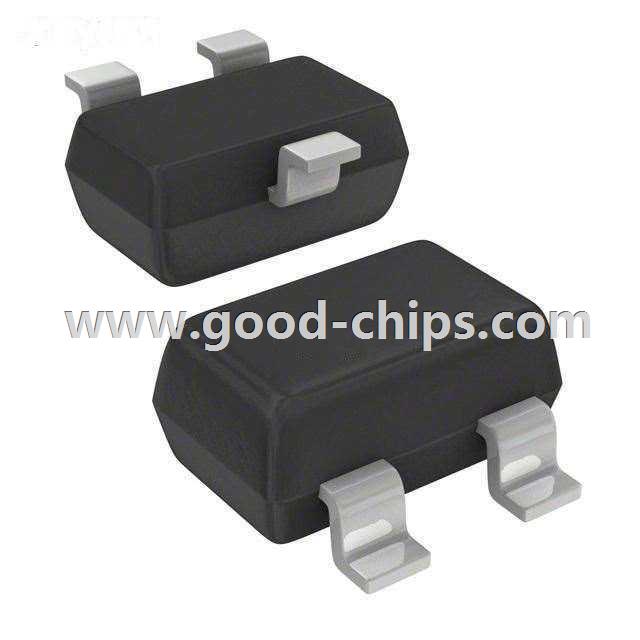

| Package / Case | SC-70, SOT-323 | |
| Supplier Device Package | SOT-323 | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CDBV3-54A-HF | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CDBV3-54A-HF is in stock for immediate shipping now. We are the distributor of Comchip Technology all series components. The condition of CDBV3-54A-HF is new and unused, you can buy CDBV3-54A-HF Comchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CDBV3-54A-HF.
