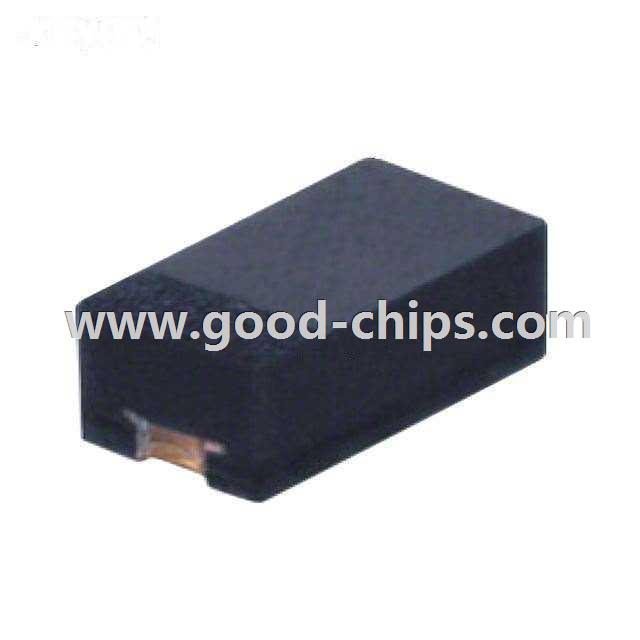

| Manufacturer Part Number: | CDBU0520 |
|---|---|
| Manufacturer: | Comchip Technology |
| Product Category: | Diodes - Rectifiers - Single |
| Available Quantity: | 101010 Pieces |
| Unit Price: | Quote by Email |
| Description: | DIODE SCHOTTKY 20V 500MA 0603 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CDBU0520 Datasheet |
| Internal Part Number | 898-CDBU0520 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Flat Chip Diodes | |
| RoHS Information | RoHS Declaration | |
| PCN Packaging | Label D/C Chg24/Mar/2016 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | Schottky Diode | |
| Category | Discrete Semiconductor Products | |
| Family | Diodes - Rectifiers - Single | |
| Manufacturer | Comchip Technology | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Diode Type | Schottky | |
| Voltage - DC Reverse (Vr) (Max) | 20V | |
| Current - Average Rectified (Io) | 500mA | |
| Voltage - Forward (Vf) (Max) @ If | 470mV @ 500mA | |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
| Reverse Recovery Time (trr) | - | |
| Current - Reverse Leakage @ Vr | 100µA @ 20V | |
| Capacitance @ Vr, F | 100pF @ 0V, 1MHz | |
| Mounting Type | Surface Mount | |
| Package / Case | 2-SMD, No Lead | |
| Supplier Device Package | 0603/SOD-523F | |
| Operating Temperature - Junction | 125°C (Max) | |
| Standard Package | 4,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CDBU0520 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CDBU0520 is in stock for immediate shipping now. We are the distributor of Comchip Technology all series components. The condition of CDBU0520 is new and unused, you can buy CDBU0520 Comchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CDBU0520.
