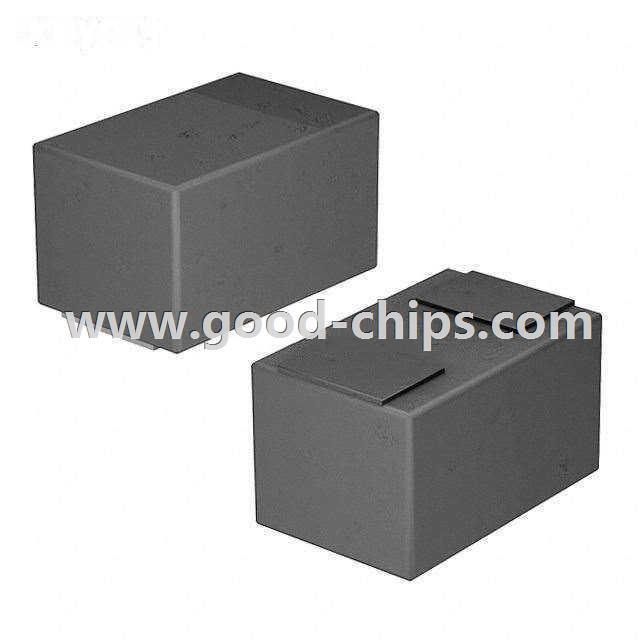

Manufacturer Part Number: | CDBER0130R |
---|---|
Manufacturer: | Comchip Technology |
Product Category: | Diodes - Rectifiers - Single |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | DIODE SCHOTTKY 30V 100MA 0503 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | CDBER0130R Datasheet |
Internal Part Number | 898-CDBER0130R | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Flat Chip Diodes | |
RoHS Information | RoHS Declaration | |
PCN Packaging | Label D/C Chg24/Mar/2016 | |
EDA / CAD Models | Download from Accelerated Designs | |
Category | Discrete Semiconductor Products | |
Family | Diodes - Rectifiers - Single | |
Manufacturer | Comchip Technology | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Diode Type | Schottky | |
Voltage - DC Reverse (Vr) (Max) | 30V | |
Current - Average Rectified (Io) | 100mA | |
Voltage - Forward (Vf) (Max) @ If | 450mV @ 10mA | |
Speed | Small Signal =< 200mA (Io), Any Speed | |
Reverse Recovery Time (trr) | - | |
Current - Reverse Leakage @ Vr | 500nA @ 10V | |
Capacitance @ Vr, F | - | |
Mounting Type | Surface Mount | |
Package / Case | 0503 (1308 Metric) | |
Supplier Device Package | 0503/SOD-723F | |
Operating Temperature - Junction | 125°C (Max) | |
Standard Package | 5,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | CDBER0130R | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
CDBER0130R is in stock for immediate shipping now. We are the distributor of Comchip Technology all series components. The condition of CDBER0130R is new and unused, you can buy CDBER0130R Comchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CDBER0130R.
