Manufacturer Part Number: | CDB8422 |
---|---|
Manufacturer: | Cirrus Logic Inc. |
Product Category: | Evaluation and Demonstration Boards and Kits |
Available Quantity: | 9014 Pieces |
Unit Price: | Quote by Email |

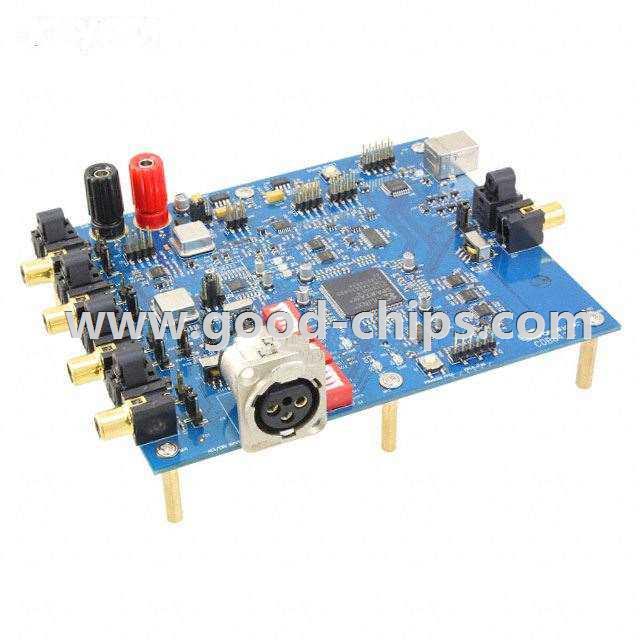

Description: | CS8422 - Audio, Sample Rate Converter Evaluation Board |
Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | CDB8422 Datasheet |
Internal Part Number | 898-CDB8422 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | Development Tool Selector | |
Online Catalog | CS8422 Evaluation Board | |
Category | Programmers, Development Systems | |
Family | Evaluation and Demonstration Boards and Kits | |
Manufacturer | Cirrus Logic Inc. | |
Series | - | |
Part Status | Active | |
Main Purpose | Audio, Sample Rate Converter | |
Embedded | Yes, FPGA / CPLD | |
Utilized IC / Part | CS8422 | |
Primary Attributes | PCM, IEC-60958, AES3/EBU, S/PDIF, and XLR Inputs, RCA Coax and Optical S/PDIF Outputs | |
Secondary Attributes | 28 ~ 216kHz Sample Rate Range, Input/Output Ratios from 6:1 to 1:6 | |
Supplied Contents | Board | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | CDB8422 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
CDB8422 is in stock for immediate shipping now. We are the distributor of Cirrus Logic Inc. all series components. The condition of CDB8422 is new and unused, you can buy CDB8422 Cirrus Logic Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CDB8422.
