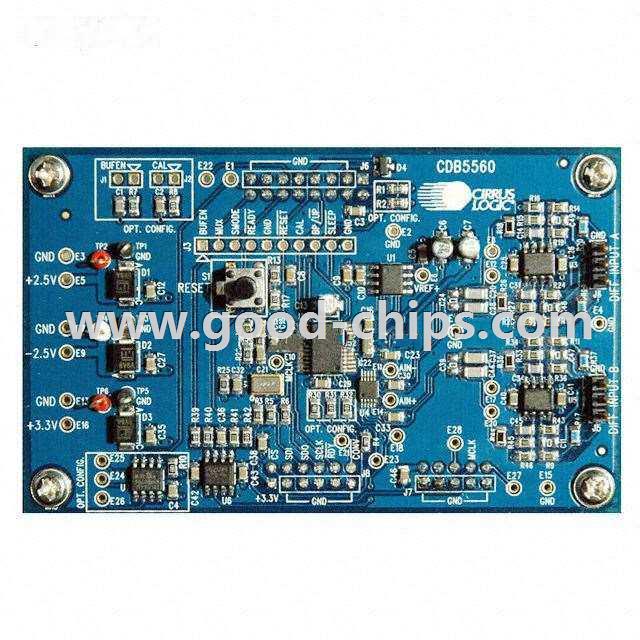

| Manufacturer Part Number: | CDB5560 |
|---|---|
| Manufacturer: | Cirrus Logic Inc. |
| Product Category: | Evaluation Boards - Analog to Digital Converters (ADCs) |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | CS5560 - 24 Bit 50k Samples per Second Analog to Digital Converter (ADC) Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CDB5560 Datasheet |
| Internal Part Number | 898-CDB5560 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector | |
| PCN Obsolescence/ EOL | Multiple Devices 26/May/2015 | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - Analog to Digital Converters (ADCs) | |
| Manufacturer | Cirrus Logic Inc. | |
| Series | - | |
| Part Status | Obsolete | |
| Number of A/D Converters | 1 | |
| Number of Bits | 24 | |
| Sampling Rate (Per Second) | 50k | |
| Data Interface | Serial | |
| Input Range | ±3 V | |
| Power (Typ) @ Conditions | 90mW @ 2.5 V | |
| Utilized IC / Part | CS5560 | |
| Supplied Contents | Board | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CDB5560 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CDB5560 is in stock for immediate shipping now. We are the distributor of Cirrus Logic Inc. all series components. The condition of CDB5560 is new and unused, you can buy CDB5560 Cirrus Logic Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CDB5560.
