Manufacturer Part Number: | CDB42428 |
---|---|
Manufacturer: | Cirrus Logic Inc. |
Product Category: | Evaluation and Demonstration Boards and Kits |
Available Quantity: | 9011 Pieces |
Unit Price: | Quote by Email |

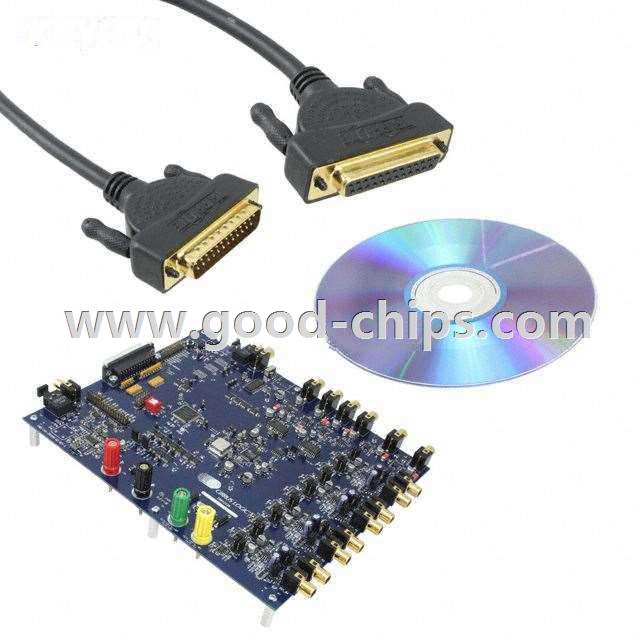

Description: | CS42428/26/18/16 - Audio, CODEC Evaluation Board |
Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | CDB42428 Datasheet |
Internal Part Number | 898-CDB42428 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | Development Tool Selector | |
Online Catalog | CS42428 Evaluation Board | |
Category | Programmers, Development Systems | |
Family | Evaluation and Demonstration Boards and Kits | |
Manufacturer | Cirrus Logic Inc. | |
Series | - | |
Part Status | Active | |
Main Purpose | Audio, CODEC | |
Embedded | Yes, FPGA / CPLD | |
Utilized IC / Part | CS42428/26/18/16 | |
Primary Attributes | 6 Single-Ended Analog Inputs and 8 Outputs, S/PDIF Digital Audio Transmitter and Receiver | |
Secondary Attributes | Graphic User Interface | |
Supplied Contents | Board | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | CDB42428 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
CDB42428 is in stock for immediate shipping now. We are the distributor of Cirrus Logic Inc. all series components. The condition of CDB42428 is new and unused, you can buy CDB42428 Cirrus Logic Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CDB42428.
