Manufacturer Part Number: | CDB1610-8W-Z |
---|---|
Manufacturer: | Cirrus Logic Inc. |
Product Category: | Evaluation Boards - LED Drivers |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

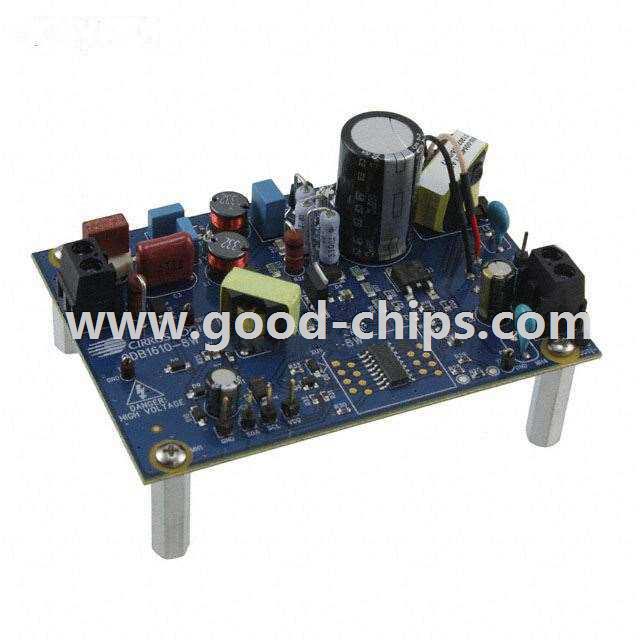

Description: | CS1610 1, Isolated Output LED Driver Evaluation Board |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | CDB1610-8W-Z Datasheet |
Internal Part Number | 898-CDB1610-8W-Z | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | Development Tool Selector Lighting Product Selector | |
PCN Obsolescence/ EOL | CS161y-FSZ Devices 28/Jul/2015 | |
Category | Programmers, Development Systems | |
Family | Evaluation Boards - LED Drivers | |
Manufacturer | Cirrus Logic Inc. | |
Series | - | |
Part Status | Obsolete | |
Current - Output / Channel | 460mA | |
Outputs and Type | 1, Isolated | |
Voltage - Output | 14.6V | |
Features | Dimmable | |
Voltage - Input | 108 ~ 132 VAC | |
Supplied Contents | Board | |
Utilized IC / Part | CS1610 | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | CDB1610-8W-Z | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
CDB1610-8W-Z is in stock for immediate shipping now. We are the distributor of Cirrus Logic Inc. all series components. The condition of CDB1610-8W-Z is new and unused, you can buy CDB1610-8W-Z Cirrus Logic Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CDB1610-8W-Z.
