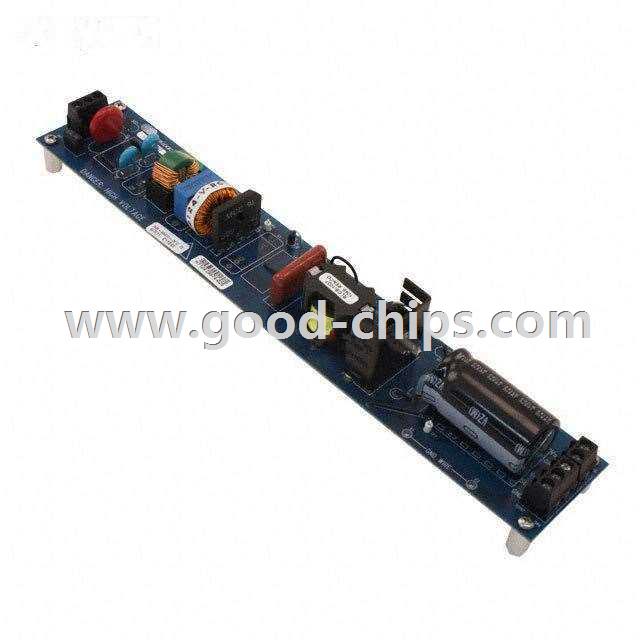

| Manufacturer Part Number: | CDB150X-01-Z |
|---|---|
| Manufacturer: | Cirrus Logic Inc. |
| Product Category: | Evaluation and Demonstration Boards and Kits |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | CS1501 - Power Management, Power Factor Correction Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CDB150X-01-Z Datasheet |
| Internal Part Number | 898-CDB150X-01-Z | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | CS150x/160x PCB Layout Guidelines Boost Inductance vs. Inductor Size Development Tool Selector | |
| Featured Product | CS1501/CS1601 Power Factor Correction IC Controllers | |
| PCN Obsolescence/ EOL | CS1501/CS1601 Devices 28/Jul/2015 | |
| Category | Programmers, Development Systems | |
| Family | Evaluation and Demonstration Boards and Kits | |
| Manufacturer | Cirrus Logic Inc. | |
| Series | - | |
| Part Status | Obsolete | |
| Main Purpose | Power Management, Power Factor Correction | |
| Embedded | No | |
| Utilized IC / Part | CS1501 | |
| Primary Attributes | 400V, 90W Output | |
| Secondary Attributes | 90 ~ 265 VAC Universal Input | |
| Supplied Contents | Board | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CDB150X-01-Z | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CDB150X-01-Z is in stock for immediate shipping now. We are the distributor of Cirrus Logic Inc. all series components. The condition of CDB150X-01-Z is new and unused, you can buy CDB150X-01-Z Cirrus Logic Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CDB150X-01-Z.
