| Manufacturer Part Number: | CD16RL1AB |
|---|---|
| Manufacturer: | C&K Components |
| Product Category: | DIP Switches |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

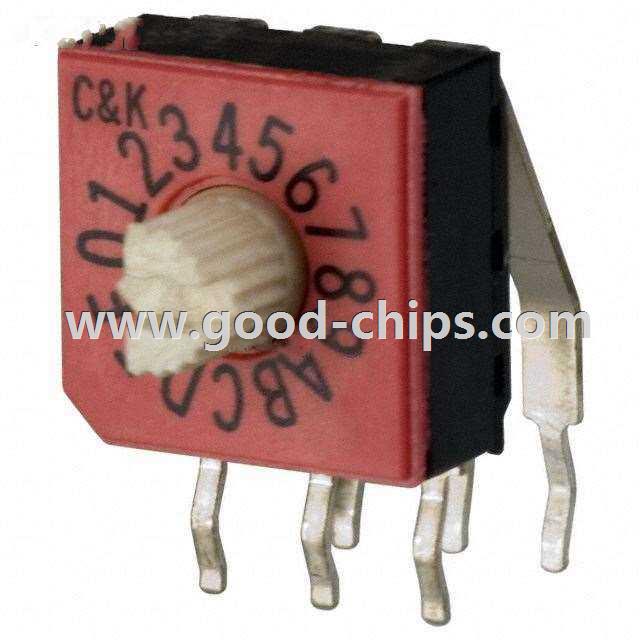

| Description: | Dip Switch Hexadecimal 16 Position Through Hole, Right Angle Rotary with Shaft Actuator 0.4VA 20VAC/DC |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CD16RL1AB Datasheet |
| Internal Part Number | 898-CD16RL1AB | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | CD Series DIP 15/Jun/2011 | |
| Category | Switches | |
| Family | DIP Switches | |
| Manufacturer | C&K Components | |
| Series | CD | |
| Packaging | Tube | |
| Part Status | Obsolete | |
| Circuit | Hexadecimal | |
| Number of Positions | 16 | |
| Current Rating | 0.4VA | |
| Voltage Rating | 20VAC/DC | |
| Actuator Type | Rotary with Shaft | |
| Actuator Level | Raised | |
| Contact Material | Copper Alloy | |
| Contact Finish | Gold | |
| Height Above Board | 0.340" (8.64mm) | |
| Mounting Type | Through Hole, Right Angle | |
| Termination Style | PC Pin | |
| Pitch | 0.100" (2.54mm), Full | |
| Washable | Yes | |
| Features | Process Sealed | |
| Body Material | Polyphenylene Sulfide (PPS) | |
| Length | 0.315" (8.00mm) | |
| Operating Temperature | -25°C ~ 85°C | |
| Mechanical Life | 20,000 Steps | |
| Electrical Life | 20,000 Steps | |
| Standard Package | 60 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CD16RL1AB | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CD16RL1AB is in stock for immediate shipping now. We are the distributor of C&K Components all series components. The condition of CD16RL1AB is new and unused, you can buy CD16RL1AB C&K Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CD16RL1AB.
