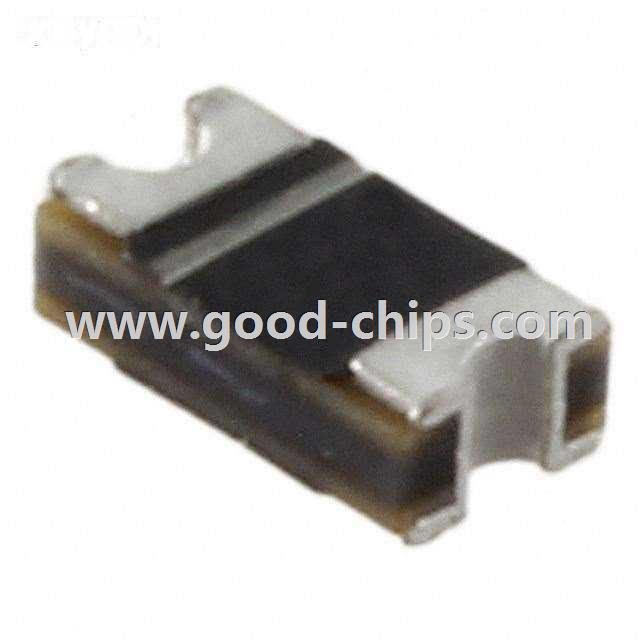

Manufacturer Part Number: | CD1206-B2100 |
---|---|
Manufacturer: | Bourns Inc. |
Product Category: | Diodes - Rectifiers - Single |
Available Quantity: | 18010 Pieces |
Unit Price: | Quote by Email |
Description: | DIODE SCHOTTKY 100V 2A 1206 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | CD1206-B2100 Datasheet |
Internal Part Number | 898-CD1206-B2100 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
3D Model | CD1206-B2100.stp | |
Online Catalog | Schottky Barrier Chip Diode | |
Category | Discrete Semiconductor Products | |
Family | Diodes - Rectifiers - Single | |
Manufacturer | Bourns Inc. | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Diode Type | Schottky | |
Voltage - DC Reverse (Vr) (Max) | 100V | |
Current - Average Rectified (Io) | 2A | |
Voltage - Forward (Vf) (Max) @ If | 850mV @ 2A | |
Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
Reverse Recovery Time (trr) | - | |
Current - Reverse Leakage @ Vr | 500µA @ 100V | |
Capacitance @ Vr, F | - | |
Mounting Type | Surface Mount | |
Package / Case | Chip, Concave Terminals | |
Supplier Device Package | 1206 | |
Operating Temperature - Junction | -55°C ~ 125°C | |
Standard Package | 3,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | CD1206-B2100 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
CD1206-B2100 is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of CD1206-B2100 is new and unused, you can buy CD1206-B2100 Bourns Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CD1206-B2100.
