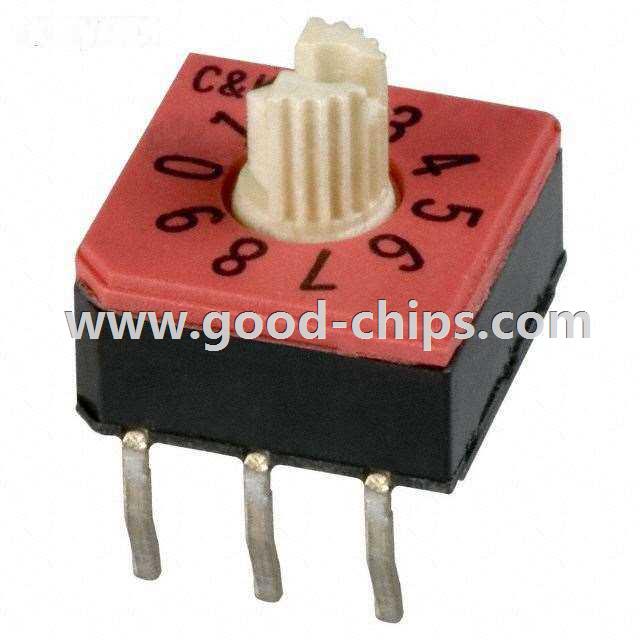

Manufacturer Part Number: | CD10RL1CB |
---|---|
Manufacturer: | C&K Components |
Product Category: | DIP Switches |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | Dip Switch BCD 10 Position Through Hole Rotary with Shaft Actuator 0.4VA 20VAC/DC |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | CD10RL1CB Datasheet |
Internal Part Number | 898-CD10RL1CB | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Obsolescence/ EOL | CD Series DIP 15/Jun/2011 | |
Category | Switches | |
Family | DIP Switches | |
Manufacturer | C&K Components | |
Series | CD | |
Packaging | Tube | |
Part Status | Obsolete | |
Circuit | BCD | |
Number of Positions | 10 | |
Current Rating | 0.4VA | |
Voltage Rating | 20VAC/DC | |
Actuator Type | Rotary with Shaft | |
Actuator Level | Raised | |
Contact Material | Copper Alloy | |
Contact Finish | Gold | |
Height Above Board | 0.295" (7.50mm) | |
Mounting Type | Through Hole | |
Termination Style | PC Pin | |
Pitch | 0.100" (2.54mm), Full | |
Washable | Yes | |
Features | Process Sealed | |
Body Material | Polyphenylene Sulfide (PPS) | |
Length | 0.315" (8.00mm) | |
Operating Temperature | -25°C ~ 85°C | |
Mechanical Life | 20,000 Steps | |
Electrical Life | 20,000 Steps | |
Standard Package | 60 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | CD10RL1CB | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
CD10RL1CB is in stock for immediate shipping now. We are the distributor of C&K Components all series components. The condition of CD10RL1CB is new and unused, you can buy CD10RL1CB C&K Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CD10RL1CB.
