CD1005-Z3V9

CD1005-Z3V9
Manufacturer Part Number:CD1005-Z3V9
Manufacturer:
Product Category:Diodes - Zener - Single
Available Quantity:9010 Pieces
Unit Price:Quote by Email
Description:Zener Diode 3.9V 200mW ±5% Surface Mount 1005
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: CD1005-Z3V9 Datasheet
CD1005-Z3V9´s Parameters
Internal Part Number898-CD1005-Z3V9
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
PCN Part Status ChangeMultiple Devices Optimization Plans Jul/2016
CategoryDiscrete Semiconductor Products
FamilyDiodes - Zener - Single
ManufacturerBourns Inc.
Series-
PackagingTape & Reel (TR)
Part StatusNot For New Designs
Voltage - Zener (Nom) (Vz)3.9V
Tolerance±5%
Power - Max200mW
Impedance (Max) (Zzt)95 Ohm
Current - Reverse Leakage @ Vr10µA @ 1V
Voltage - Forward (Vf) (Max) @ If-
Operating Temperature-55°C ~ 125°C
Mounting TypeSurface Mount

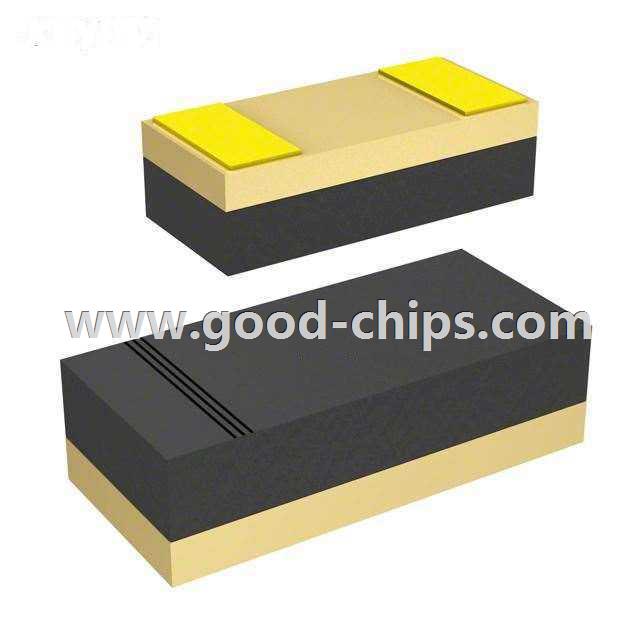

Package / Case1005 (2512 Metric)
Supplier Device Package1005
Standard Package 4,000
Weight0.001 KG
ApplicationEmail for details
Replacement PartCD1005-Z3V9
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

CD1005-Z3V9 is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of CD1005-Z3V9 is new and unused, you can buy CD1005-Z3V9 Bourns Inc. with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for CD1005-Z3V9.
