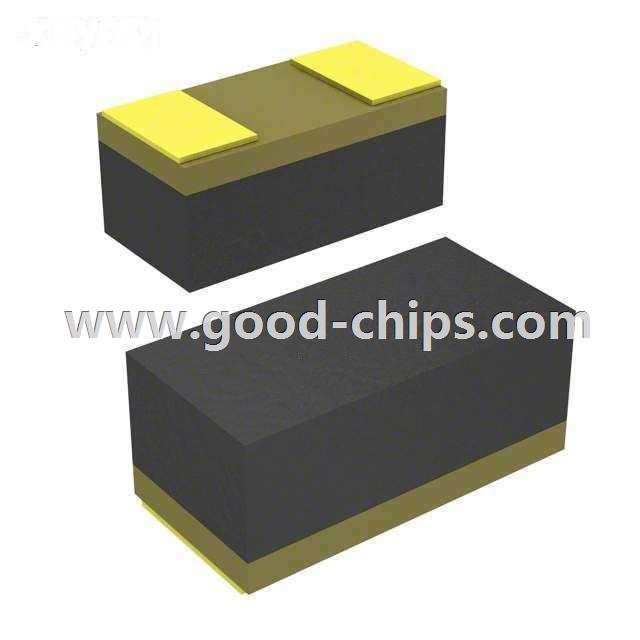

| Manufacturer Part Number: | CD1005-B0520 |
|---|---|
| Manufacturer: | Bourns Inc. |
| Product Category: | Diodes - Rectifiers - Single |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | DIODE SCHOTTKY 20V 500MA 1005 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CD1005-B0520 Datasheet |
| Internal Part Number | 898-CD1005-B0520 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | CD1005 Series Material Declaration | |
| PCN Part Status Change | Multiple Devices Optimization Plans Jul/2016 | |
| Category | Discrete Semiconductor Products | |
| Family | Diodes - Rectifiers - Single | |
| Manufacturer | Bourns Inc. | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Not Recommended For New Designs | |
| Diode Type | Schottky | |
| Voltage - DC Reverse (Vr) (Max) | 20V | |
| Current - Average Rectified (Io) | 500mA | |
| Voltage - Forward (Vf) (Max) @ If | 550mV @ 1A | |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
| Reverse Recovery Time (trr) | - | |
| Current - Reverse Leakage @ Vr | 100µA @ 20V | |
| Capacitance @ Vr, F | 100pF @ 0V, 1MHz | |
| Mounting Type | Surface Mount | |
| Package / Case | 1005 (2512 Metric) | |
| Supplier Device Package | 1005 | |
| Operating Temperature - Junction | -40°C ~ 125°C | |
| Standard Package | 4,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CD1005-B0520 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CD1005-B0520 is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of CD1005-B0520 is new and unused, you can buy CD1005-B0520 Bourns Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CD1005-B0520.
